Resource Queue

This article explains the concept of resource queues and describes how to create, edit, and delete them.

1. Overview

Resource queues are the platform-level logical abstraction of resource groups in the underlying compute engine. They are used to isolate resources and control concurrency for different types of tasks.

Resource queues help address the following issues:

Query tasks and materialization build tasks competing for resources
High-priority tasks being blocked by low-priority tasks
Uncontrolled resource usage during peak hours

2. Relationship Between Resource Queues and Engine Resource Groups

One resource queue is bound to one engine resource group.
The same engine resource group can be bound to multiple resource queues.
Platform-side resource queues are mainly used for:
- Usage scope control
- Concurrency limits
- Scheduling priority

3. Resource Queue Types

1. Query Resource Queue

Purpose:

Query pages
Query APIs

Characteristics:

Allows only query tasks
Does not participate in materialization builds or backfill tasks

2. Build Resource Queue (Materialization Resource Queue)

Purpose:

Standard materialization builds
Accelerated materialization builds

Characteristics:

Allows only build tasks
Supports a specified user scope
Supports concurrency limits
Supports time-based concurrency control

4. Create a Resource Queue

4.1 Configuration Entry Point

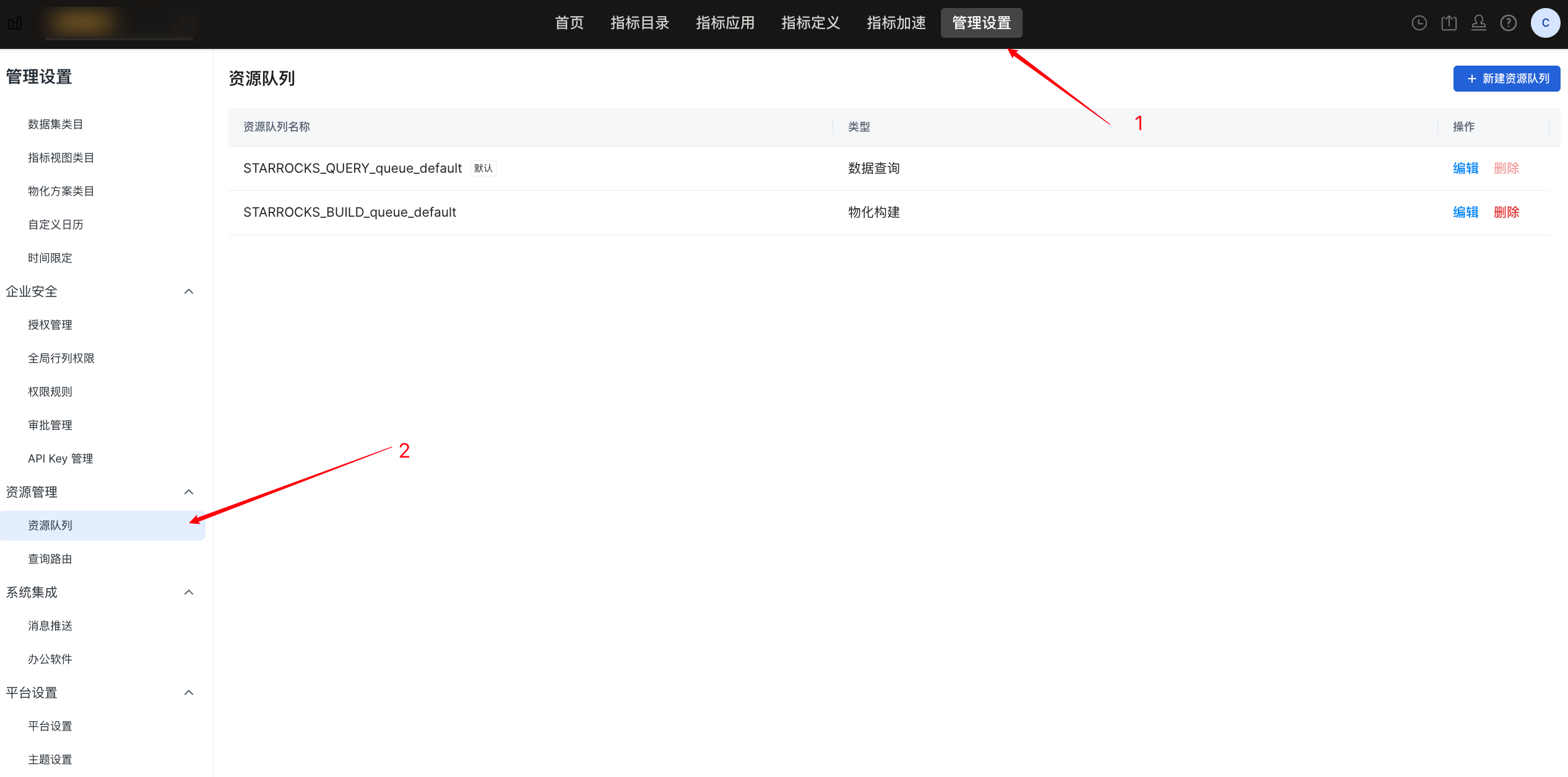

In Aloudata CAN, go to Management Settings -> Resource Management -> Resource Queue, as shown below:

4.2 Create a Resource Queue

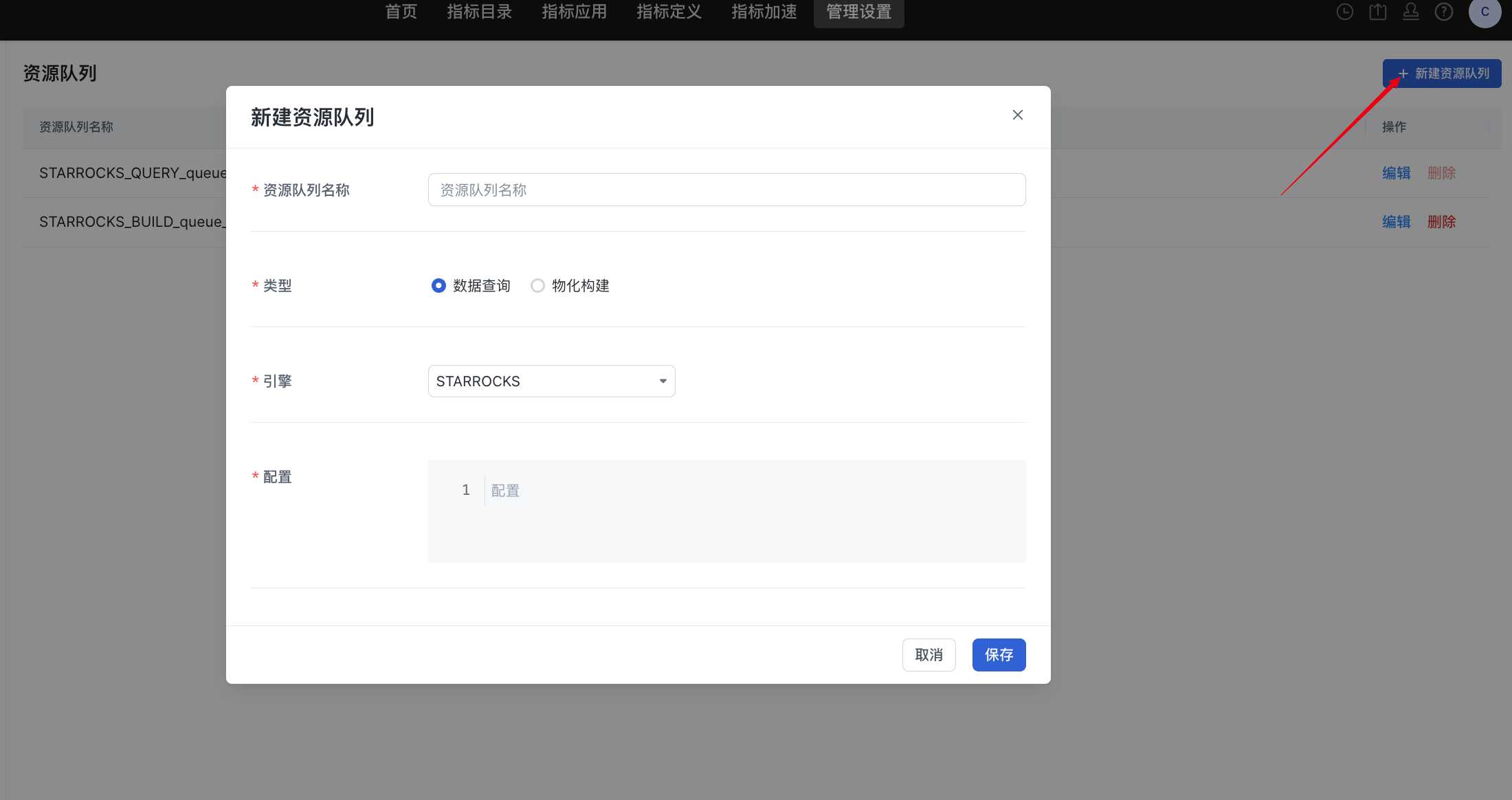

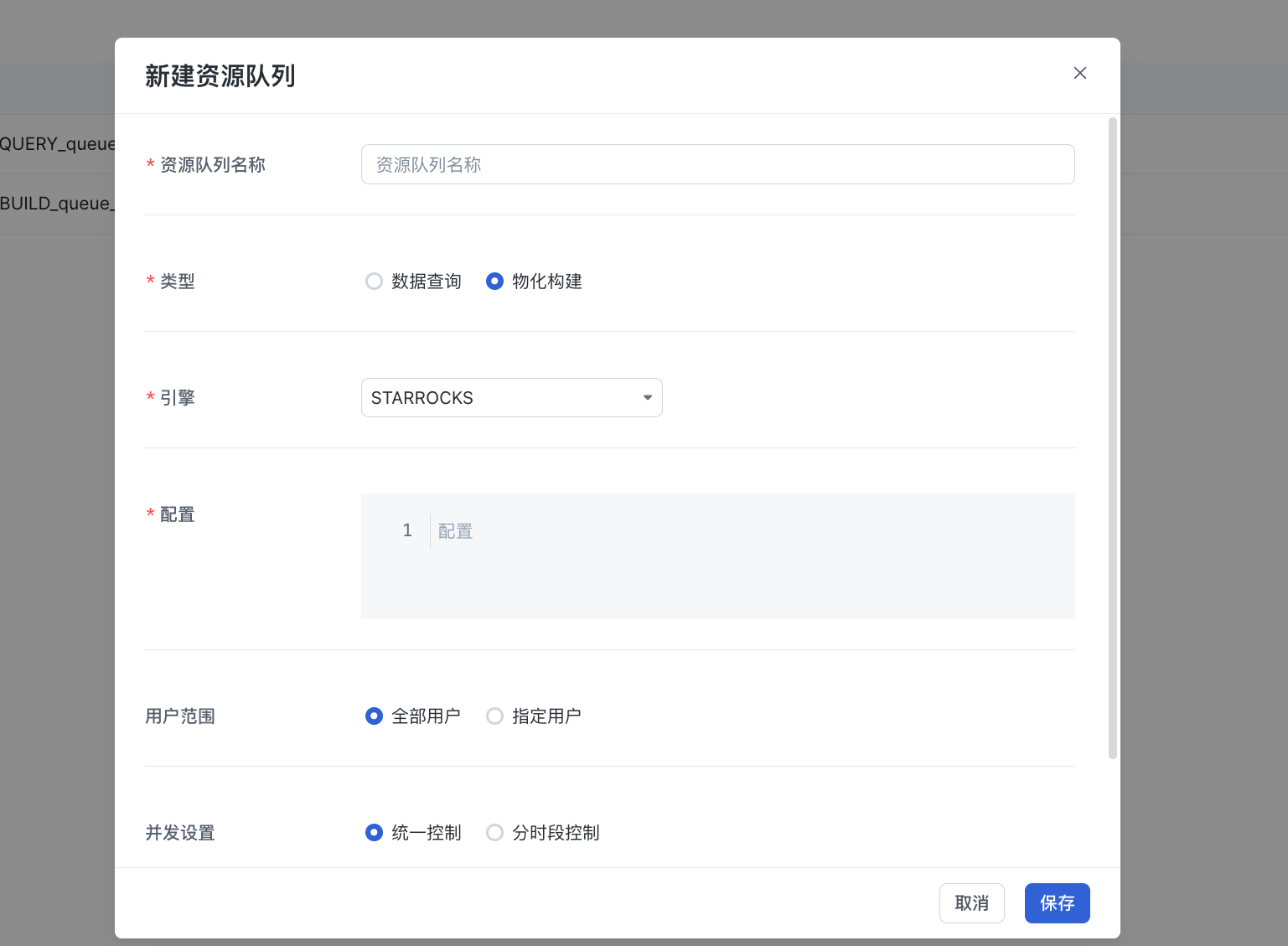

On the Resource Queue page, click New Resource Queue in the upper-right corner. The resource queue creation dialog is shown below.

Configuration Item	Description	Example
Resource Queue Name	The unique identifier of the resource queue in the platform. It is used for selection in scenarios such as materialization tasks and query routing.	STARROCKS_QUERY_DEFAULT
Type	Data Query: can be referenced by query routing rules and is used only for query tasks. Materialization Build: used for materialization build tasks.
Engine	Specifies the compute engine type bound to the resource queue.
Configuration	Configures engine-side resource group information.	"resourceIsolationSql": "SET resource_group = ''"
User Scope	Controls which users can use the resource queue. Options include all users and specified users.
Concurrency Control	Limits the number of tasks that can run concurrently in the resource queue. Unified control sets a fixed maximum concurrency value. Time-based control sets different concurrency limits for different time periods.	Example: - Daytime (09:00-18:00): concurrency 2 - Nighttime (18:00-09:00): concurrency 10
