Query External Plan Reference Script
API Description
This API obtains the complete reference SQL scripts for an external materialization plan.
create table (create materialized table)
add partition (incrementally create partitions)
drop table
insert overwrite (backfill by partition)
API URL
Request parameters
Common Request Headers
| parameter | Type | required | Description |
|---|---|---|---|
| tenant-id | String | Yes | Tenant ID, used to identify the tenant for metric query content. |
| auth-type | String | Yes | Authentication method. Supports UID, TOKEN, ACCOUNT, and APIKEY. |
| auth-value | String | Yes | Authentication value corresponding to auth-type. |
How to Obtain Common parameters

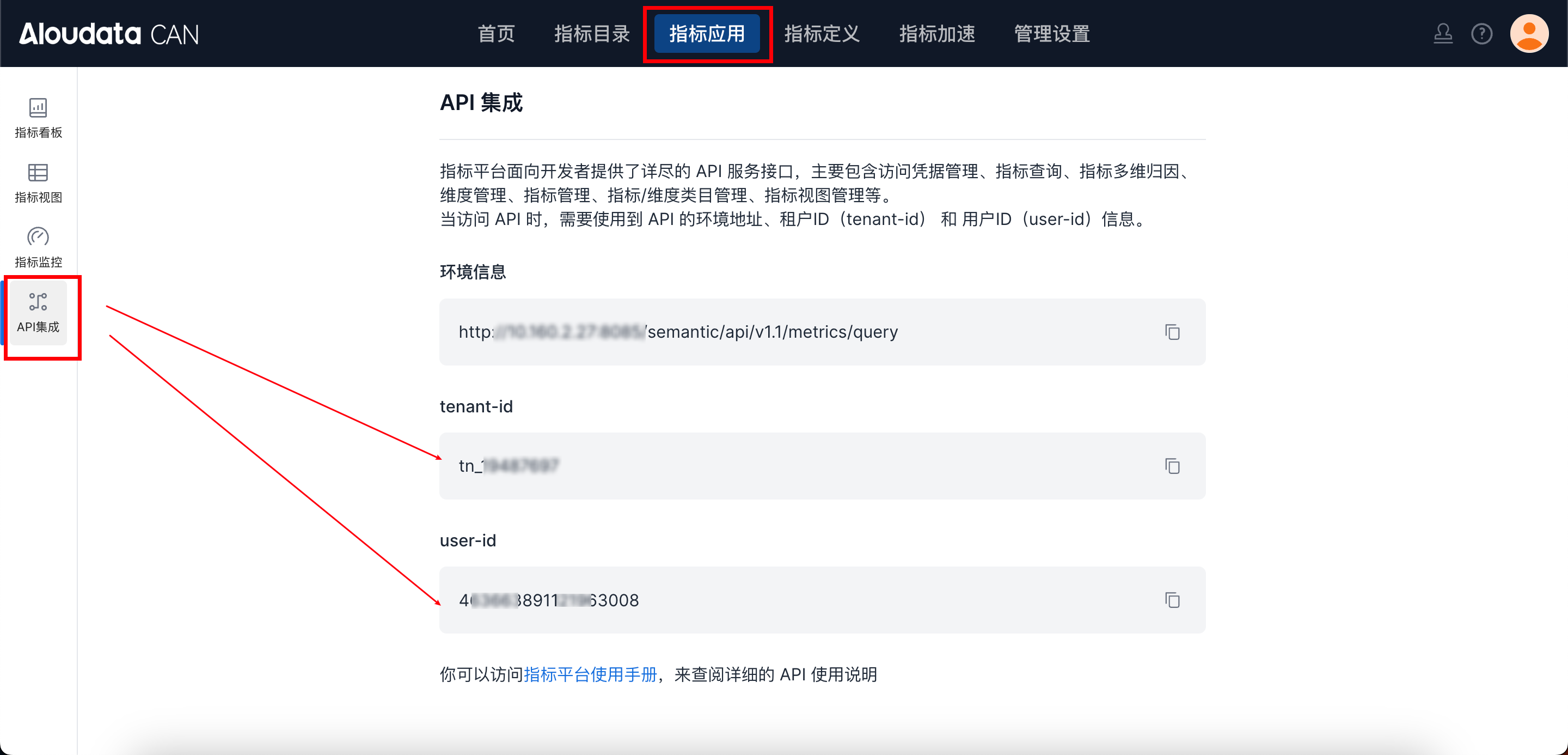

You can obtain this in the top navigation of Aloudata CAN under Metric Applications > API Integration.
Request parameters
| Field | Type | required | Description |
|---|---|---|---|
| uuid | String | Yes | Unique ID of the materialization plan |
Request Example
Response parameter Description
| Field | Type | Description |
|---|---|---|
| referenceSchedule | Object | Reference scheduling configuration for the external plan. Display only |
| sqlScripts | Object | SQL scripts organized by table name (DDL + DML) |
referenceSchedule Field
| Field | Description |
|---|---|
| cron | Scheduling cron expression |
| granularity | Granularity, such as DAY |
| updateUpperInterval | Upper bound offset |
| updateLowerInterval | Lower bound offset |
| isFullRefresh | Whether it is a full refresh |
sqlScripts Field Structure
{
"{tableName}": {
"ddl": {
"create_table": [{ "sql": "..." }],
"add_partition": [{ "sql": "..." }],
"drop_table": [{ "sql": "..." }]
},
"dml": {
"insert_overwrite": [{ "sql": "..." }]
}
}
}
Response Example
{
"data": {
"referenceSchedule": {
"cron": "0 0 0 * * ?",
"granularity": "DAY",
"updateUpperInterval": -1,
"updateLowerInterval": -5,
"isFullRefresh": true
},
"sqlScripts": {
"table_name_demo": {
"ddl": {
"create_table": [
{
"sql": "CREATE TABLE `default_catalog`.`aloudatacan`.`table_name_demo` (`metric_time` DATE COMMENT 'Metric date', `sum_order_amount` DECIMAL(38, 10) COMMENT 'Sum of order_amount', `dim` STRING COMMENT 'dim') ENGINE=OLAP PARTITION BY RANGE(`metric_time`)(PARTITION default1 VALUES LESS THAN (\"1970-01-01\")) DISTRIBUTED BY RANDOM;"
}
],
"add_partition": [
{
"sql": "ALTER TABLE `default_catalog`.`aloudatacan`.`table_name_demo` ADD PARTITION IF NOT EXISTS ${partition_name} VALUES [(${start_time}), (${end_time})) "
}
],
"drop_table": [
{
"sql": "drop table `default_catalog`.`aloudatacan`.`table_name_demo`"
}
]
},
"dml": {
"insert_overwrite": [
{
"sql": "SELECT `t7`.`day_col` AS `metric_time`, `t7`.`f2` AS `sum_order_amount`, `t7`.`username` AS `dim` FROM (...) ORDER BY (`t7`.`day_col`) DESC"
}
]
}
}
}
}
}
