Query Metric View Results

API Description

Use this API to query and return the result set for a specified metric view.

API URL

GET Http://{semantic_host:semantic_port}/semantic/api/v1.1/analysisView/query?viewName=view_test

For how to obtain semantic_host:semantic_port, see Calling APIs.

Request Parameters

Common Request Parameters (HEADERS)

Parameter	Type	Required	Description
tenant-id	String	Yes	The tenant ID that identifies the tenant where the metric view belongs
auth-type	String	Yes	Authentication type. Supported values: UID, TOKEN, ACCOUNT, and APIKEY
auth-value	String	Yes	The authentication value that corresponds to auth-type

How to Obtain Common Parameters

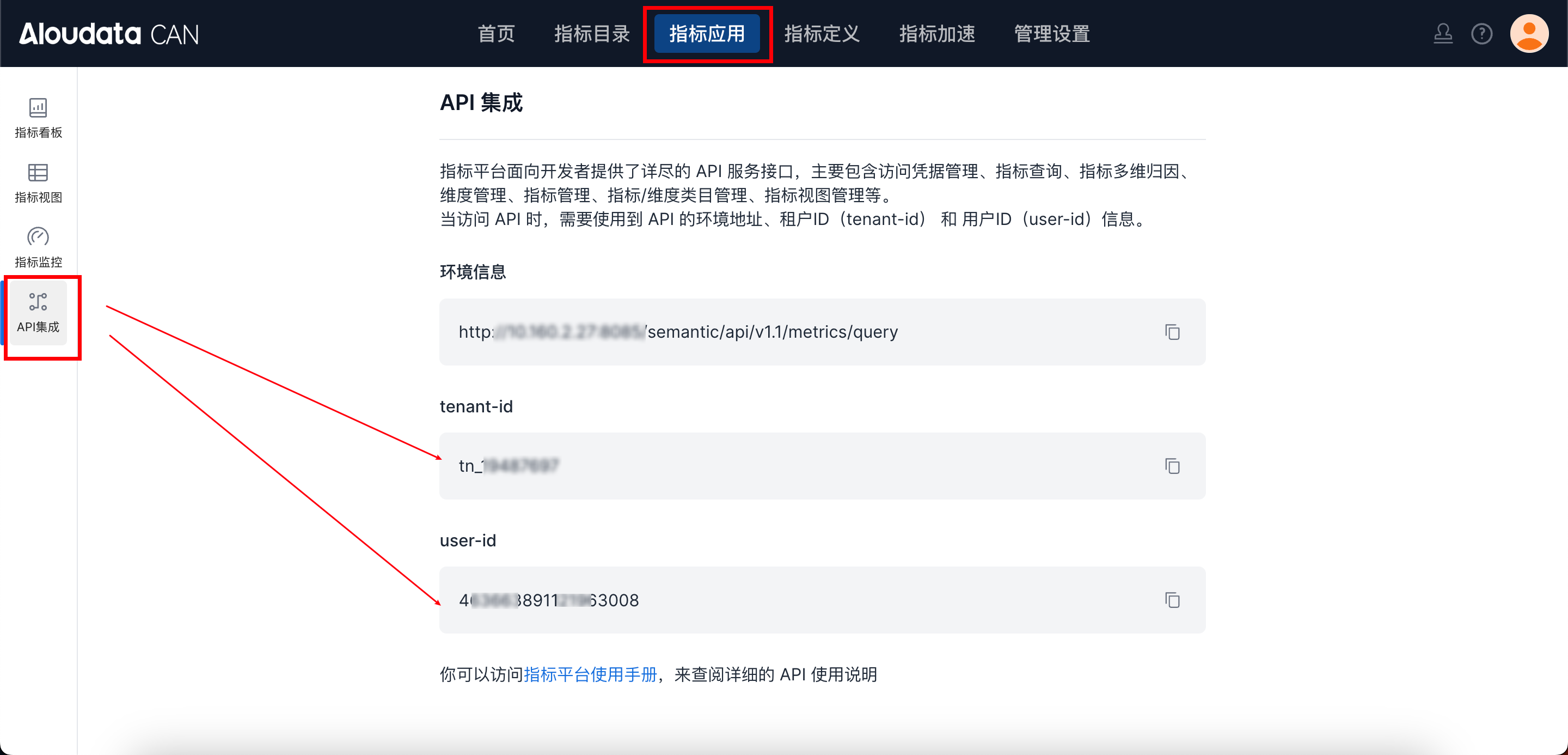

To obtain tenant-id, select a metric application in the top navigation bar of Aloudata CAN, choose API Integration from the left-side menu, and copy it from the API Integration page. Set auth-value to the authentication value that corresponds to the selected auth-type.

Request Parameters

Parameter	Type	Required	Description
viewName	String	Yes	Metric view name
pageIndex	Integer	No	Current page. Defaults to 0.
pageSize	Integer	No	Number of records. Defaults to 1001.
queryResultType	String	No	Result return type. DATA returns result data and metadata; META returns metadata only.

Response Parameters

Parameter	Type	Required	Description
metas	Object	Yes	Metadata. For details, see metas parameters.
analysisView	Array	Yes	Result array
queryId	String	No	Query ID
waring	String	No	Warning information

metas Parameters

Parameter	Type	Required	Description
name	String	Yes	Field name
dataTypeName	String	Yes	Field type name
schemaName	String	Yes	Schema name
tableName	String	Yes	Table name

Request Example

http://127.0.0.1/semantic/api/v1.1/analysisView/query?viewName=view_test

Response Example

{
    "data": {
        "queryId": "afc66f6274714b9480952762c648a8af",
        "warning": null,
        "table": {
            "columns": {
                "haha": [
                    {
                        "value": 512881,
                        "flag": null,
                        "count": 1
                    }
                ],
                "metric_time": [
                    {
                        "value": "2024-04-23",
                        "flag": null,
                        "count": 1
                    }
                ]
            }
        },
        "metas": [
            {
                "name": "metric_time",
                "dataType": null,
                "dataTypeName": "DATE",
                "displaySize": null,
                "schemaName": null,
                "scale": null,
                "precision": null,
                "tableName": null
            },
            {
                "name": "haha",
                "dataType": null,
                "dataTypeName": "BIGINT",
                "displaySize": null,
                "schemaName": null,
                "scale": null,
                "precision": null,
                "tableName": null
            }
        ]
    },
    "success": true,
    "code": null,
    "message": null,
    "traceId": "c7a7eb497e5f40d7a16a97b17a52a131.524.17138708081470003"
}
