Query All Available Dimensions

API Description

Use this API to query the complete set of available dimensions for one or more metrics.

API URL

GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metrics/dimensionAll

For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.

Request Parameters

Common Request Parameters (HEADERS)

Parameter	Type	Required	Description
tenant-id	String	Yes	The tenant ID for the tenant that contains the metric query content.
auth-type	String	Yes	Authentication method. Supported values: UID, TOKEN, ACCOUNT, APIKEY.
auth-value	String	Yes	Authentication value that corresponds to auth-type.

How to Obtain Common Parameters

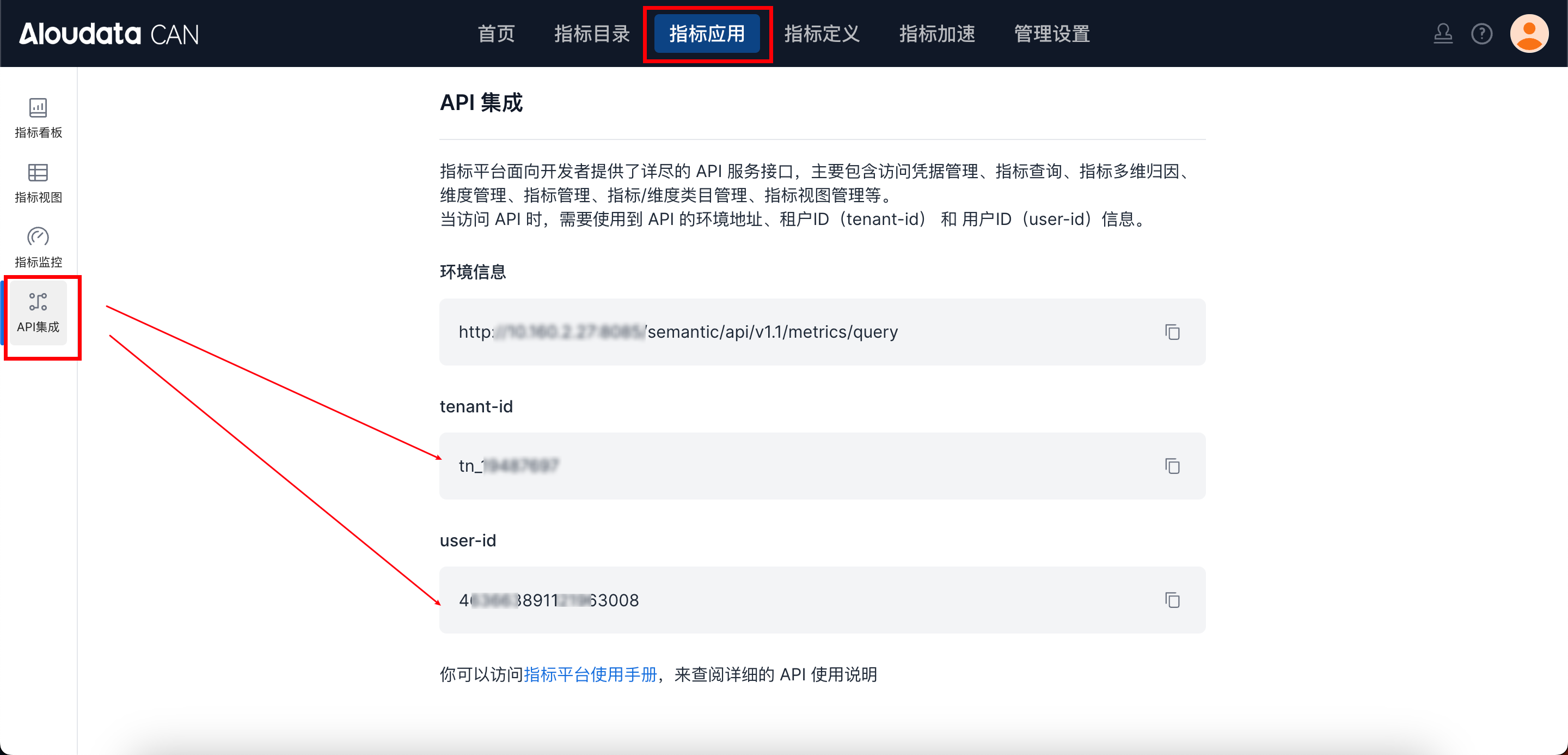

To obtain tenant-id, select the metric application from the top navigation bar in Aloudata CAN, choose API Integration from the left navigation menu, and copy it from the API Integration page. Set auth-value based on the selected auth-type.

Request Parameters

Parameter	Type	Required	Maximum Length	Description
metricNames	Array[String]	Yes		Metric name list. When multiple metrics are passed, the API retrieves all available dimensions for each metric separately.

Response Parameters

Response Parameter Description

Parameter	Type	Required	Maximum Length	Description
code	String	Yes	32	API response code.
message	String	Yes	512	Message body.
traceId	String	Yes	128	Trace ID.
data	Array[Object]			Response data. For details, see "data Parameter Description".

data Parameter Description

Parameter	Type	Required	Maximum Length	Description
basicAttributes	Map	No		Basic attributes.
businessAttributes	Map	No		Business attributes.
technicalAttributes	Map	No		Technical attributes.
managementAttributes	Map	No		Management attributes.
name	String	Yes		Dimension name.
dimName	String	Yes		English dimension name.
dimCode	String	No		Dimension code.
dimDisplayName	String	Yes		Dimension display name.
dimCategoryId	String			Category ID of the dimension.
dimDescription	String			Dimension description.
datasetName	String			Name of the dataset bound to the dimension.
originDataType	String			Dimension type.
config	array			Dimension source description. For details, see "config Parameter Description".

config Parameter Description

Parameter	Type	Required	Description
type	String	Yes	Dimension type, indicating the source of the dimension. Enum values: - COLUMN_BIND: column binding - CUSTOM: custom type
value	String	Yes	If the dimension is a column-binding dimension, value is the column name. If the dimension is a custom dimension, specify an expression. The expression is equivalent to adding a calculated column to the dataset.

Request Example

curl --location --request GET 'https://127.0.0.1/anymetrics/api/v1/metrics/dimensionAll?metricNames=addtid,1c_RANK' \
--header 'auth-type: UID' \
--header 'tenant-id: tn_19487697' \
--header 'auth-value: 463663891121963008'

Response Example

{
    "data": {
        "addtid": [
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "metric_time",
                "dimName": "metric_time",
                "dimCode": null,
                "dimDisplayName": "metric_time",
                "dimCategoryId": null,
                "dimDescription": "metric time",
                "datasetName": null,
                "originDataType": "DATE",
                "config": null,
                "displayStatus": null
            }
        ],
        "1c_RANK": [
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "dmd02724b1da08d1fb9007b16572563c",
                "dimName": "Unitss",
                "dimCode": "",
                "dimDisplayName": "Unitss",
                "dimCategoryId": "-1",
                "dimDescription": "Units",
                "datasetName": "TransactionDetails",
                "originDataType": "DECIMAL",
                "config": {
                    "type": "COLUMN_BIND",
                    "value": "Units"
                },
                "displayStatus": null
            },
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "dme36114b32b18abf2fbf2d63572b7ac",
                "dimName": "TransactionDates",
                "dimCode": "",
                "dimDisplayName": "TransactionDate",
                "dimCategoryId": "-1",
                "dimDescription": "TransactionDate",
                "datasetName": "TransactionDetails",
                "originDataType": "DATETIME",
                "config": {
                    "type": "COLUMN_BIND",
                    "value": "TransactionDate"
                },
                "displayStatus": null
            },
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "dmddd974b52803e7c3a89fe35f82effc",
                "dimName": "dtr1",
                "dimCode": null,
                "dimDisplayName": "Partition Date",
                "dimCategoryId": "-1",
                "dimDescription": "This is a partition dimension.",
                "datasetName": "TransactionDetails",
                "originDataType": "INT",
                "config": {
                    "type": "COLUMN_BIND",
                    "value": "dt"
                },
                "displayStatus": null
            },
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "dmeda0d4fc2ae54735319c0f7013d276",
                "dimName": "TransactionID1",
                "dimCode": "",
                "dimDisplayName": "TransactionID",
                "dimCategoryId": "-1",
                "dimDescription": "TransactionID",
                "datasetName": "TransactionDetails",
                "originDataType": "BIGINT",
                "config": {
                    "type": "CUSTOM",
                    "value": "if((DaysOfMonth(['TransactionDetails'/'TransactionDate'])) = (TotalDaysOfMonth(['TransactionDetails'/'TransactionDate'])), 1, 0)"
                },
                "displayStatus": null
            },
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "dm8e694432db67b6d8fc594c70b9fe2c",
                "dimName": "ten",
                "dimCode": "",
                "dimDisplayName": "times",
                "dimCategoryId": "-1",
                "dimDescription": "",
                "datasetName": "TransactionDetails",
                "originDataType": "DATETIME",
                "config": {
                    "type": "COLUMN_BIND",
                    "value": "ten"
                },
                "displayStatus": null
            },
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "metric_time",
                "dimName": "metric_time",
                "dimCode": null,
                "dimDisplayName": "metric_time",
                "dimCategoryId": null,
                "dimDescription": "metric time",
                "datasetName": null,
                "originDataType": "DATE",
                "config": null,
                "displayStatus": null
            }
        ]
    },
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "4b5d80fad0fc44d0937253362b4e9da5.79456.17490900608203107"
}
