List Dimensions

API Description

Use this API to retrieve a list of dimensions that match specified conditions. You can filter by category, owner, keyword, and other criteria to return matching dimension entity details.

API URL

POST Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/dimension/list

To obtain anymetrics_host:anymetrics_port, see Calling APIs.

Request Parameters

Common Request Headers

Parameter	Type	Required	Description
tenant-id	String	Yes	The tenant ID of the tenant that contains the metric query assets.
auth-type	String	Yes	Authentication type. Supported values: UID, TOKEN, ACCOUNT, APIKEY.
auth-value	String	Yes	Authentication value corresponding to auth-type.

How to Obtain Common Parameters

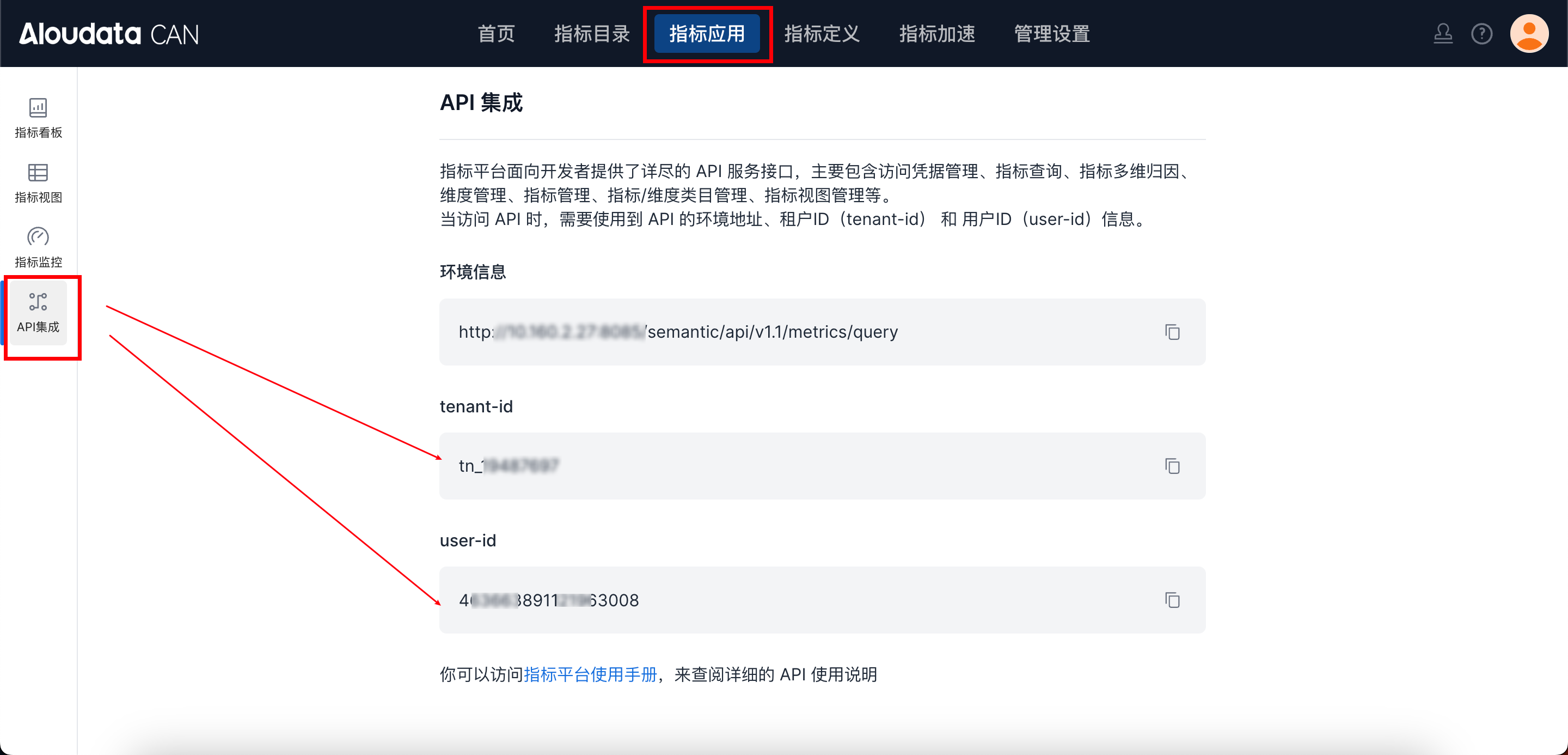

In Aloudata CAN, select the metric application from the top navigation bar, then choose API Integration from the left navigation menu. You can obtain tenant-id on the API Integration page. Set auth-value to the authentication value required by the selected auth-type.

Request Body

Parameter	Type	Required	Description
categoryId	String	No	Dimension category ID.
owners	Array[String]	No	Owner user IDs.
keyword	String	No	Searches dimName and dimDisplayName by keyword.
statusFilters	List	No	Dimension status filter. Enumerated values: UNPUBLISHED: unpublished; PUBLISHED: published; SAVED_NOT_PUBLISHED: saved but not published; OFFLINE: offline; PENDING_PUBLISH: publishing; PENDING_OFFLINE: taking offline; PENDING_DELETE: pending deletion.
datasetName	String	No	Dataset name.
pager	Object	No	Pagination settings. See Subtable 1: pager.

Subtable 1: pager

Parameter	Type	Required	Description
pageNumber	Intger	Yes	Page number.
pageSize	Intger	Yes	Number of records displayed on the current page.

Response Parameters

Response Parameter Overview

Parameter	Type	Required	Description
code	String	Yes	API response code.
success	boolean	Yes	Whether the request succeeded.
errorMsg	String	Yes	Error message.
detailErrorMsg	String	Yes	Detailed error message.
traceId	String	Yes	Trace ID for troubleshooting.
data	Array[Object]	Yes	Dimension entity data. See data Parameters.

data Parameters

Parameter	Type	Required	Description
dimName	String	Yes	Dimension name. - Unique within the tenant and cannot be modified. - Supports only letters, digits, and underscores. Two consecutive underscores are not supported.
dimCode	String	Yes	Dimension code.
datasetName	String	No	Dataset name.
dimDisplayName	String	Yes	Dimension display name. Supports any characters, up to 150 characters.
dimCategoryId	String	No	Dimension category ID. Use the fixed value -1 for Uncategorized. If omitted, the dimension is Uncategorized by default.
dimDescription	String	No	Dimension description. Supports any characters, up to 300 characters.
displayStatus	String	No	Dimension status. Enumerated values: UNPUBLISHED: unpublished; PUBLISHED: published; SAVED_NOT_PUBLISHED: saved but not published; OFFLINE: offline; PENDING_PUBLISH: publishing; PENDING_OFFLINE: taking offline; PENDING_DELETE: pending deletion.
config		Yes	Dimension source, either a column or an expression. See config Parameters.

config Parameters

Parameter	Type	Required	Description
type	String	Yes	Dimension type, which indicates the source type. Enumerated values: - COLUMN_BIND: column binding - CUSTOM: custom type
value	String	Yes	For a column-bound dimension, set value to the column name. For a custom dimension, set value to an expression. The expression is equivalent to adding a calculated column to the dataset.

Request Example

{
  "owners":[],
  "categoryId": "-1",
  "keyword": "order",
  "datasetName": "region",
  "pager": {
    "pageNumber": 1,
    "pageSize": 50
  }
}

Response Example

{
    "data": {
        "total": 1,
        "pageNumber": 1,
        "pageSize": 50,
        "hasNext": false,
        "data": [
            {
                "basicAttributes": null,
                "businessAttributes": null,
                "technicalAttributes": null,
                "managementAttributes": null,
                "name": "76cb38381976489f9e88248924c69b54",
                "dimName": "column_0",
                "dimDisplayName": "Order ID",
                "dimCategoryId": "-1",
                "dimDescription": null,
                "datasetName": "region",
                "originDataType": "VARCHAR",
                "config": {
                    "type": "COLUMN_BIND",
                    "value": "column_0"
                }
            }
        ]
    },
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "202baf375f5d4791a9f9555ba33afe43.143.17193060863270127"
}
