Scheduling

1. Scheduling Overview

The scheduling system is built on a periodic scheduling framework. It uses Task -> Instance -> DAG as its core model to provide predictable, observable, and maintainable scheduling.

The scheduling system helps you:

  • Define which tasks must run each day or each cycle.

  • Define task dependencies, with support for automatic detection and manual intervention.

  • Support operations such as multiple updates per day, data backfill, and reruns.

2. Core Concepts

1. Tasks and Instances

  • Task: The logical unit of scheduling configuration, such as a data source table task, regular materialization task, or acceleration materialization task.

  • Instance: The concrete execution unit generated from a task for a specific scheduled time or business date.

A task may generate one or more instances in a day, such as minute-level or hourly instances.

2. Cycle Types

The following scheduling cycles are supported:

  • Minute.

  • Hour.

  • Day.

  • Week.

  • Month.

  • Year.

Different cycles use different instance generation rules:

  • Minute and hour: Multiple instances may be generated in one day.

  • Day and above: One instance is generated per day. On non-scheduled days, an empty-run instance is generated.

3. Time Model

1. Scheduled Time

Scheduled time is derived from the task time configuration:

  • Day, week, month, and year: date_trunc(scheduled_time, DAY)

  • Hour: date_trunc(scheduled_time, HOUR)

  • Minute: date_trunc(scheduled_time, MINUTE)

2. Business Date

  • Periodic instances: Derived from scheduled time.

    • Daily cycle: business date = scheduled time - 1 day.

    • Hourly cycle: business date = scheduled time - 1 hour.

    • Minute cycle: business date = scheduled time - 1 minute.

  • Backfill instances: Specified by the user when submitting the backfill.

4. Instance Status Transitions

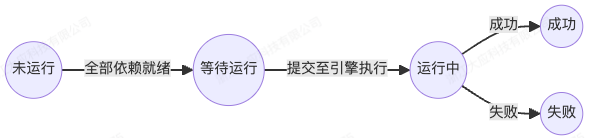

1. Normal Status Transitions

2. Manual Intervention Statuses

  • Mark as successful:

    • Allowed source statuses: Not Run, Waiting, Failed, and Paused.

    • Used to skip the current instance and continue downstream execution.

  • Pause:

    • Allowed source statuses: Not Run, Waiting, and Running.

    • After recovery, the instance is treated as a rerun.

5. Task Types

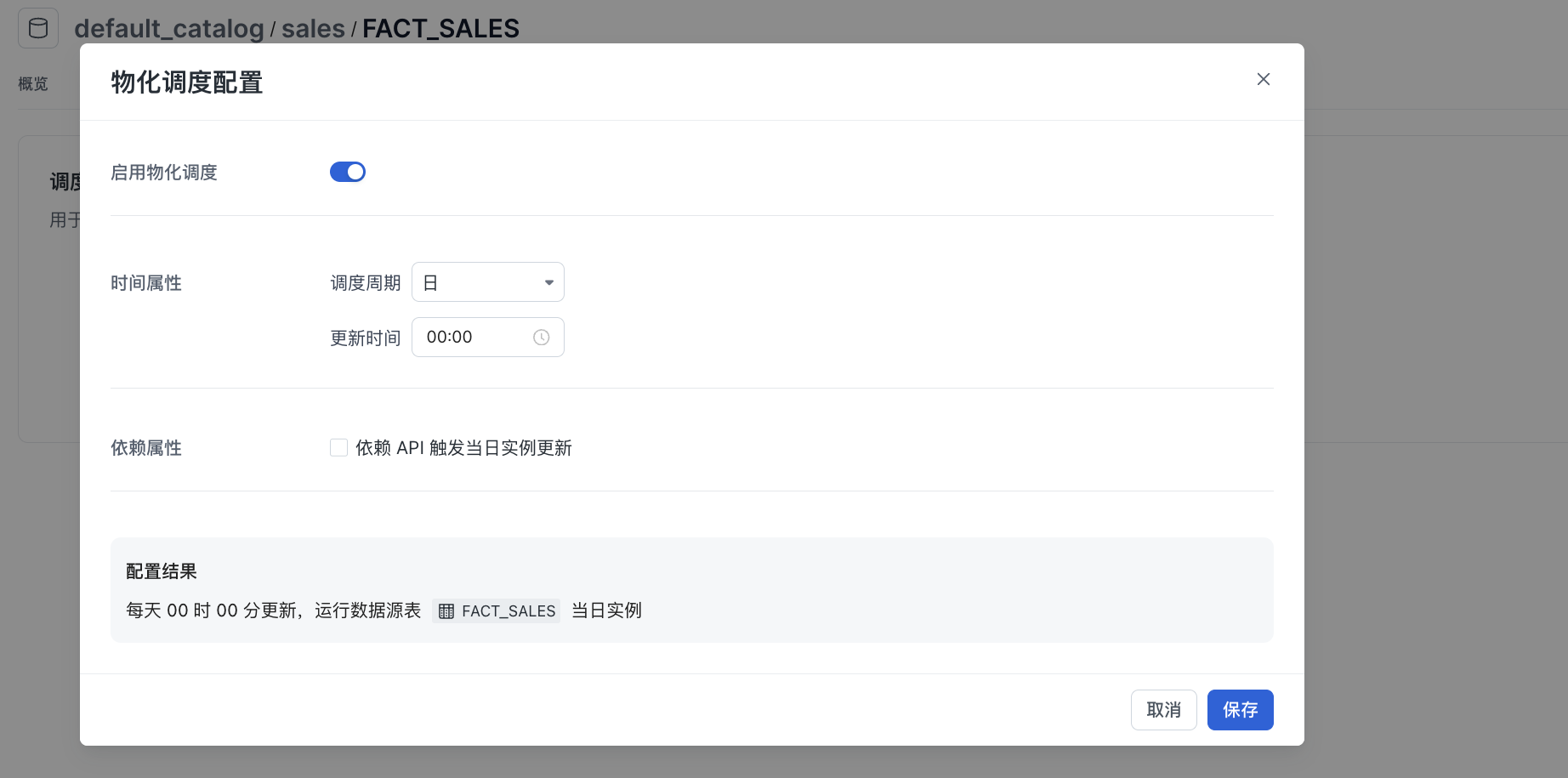

1. Data Source Table Tasks

  • Describes update events for a data source.

  • Supports:

    • Enabling or disabling scheduling.

    • Periodic scheduling.

    • Update triggers from external APIs.

Data source table tasks are important dependency nodes for downstream materialization tasks.

2. Regular Materialization Tasks

  • Generate result tables for external systems or queries.

  • Characteristics:

    • They do not participate in query rewrite.

    • They support full, partition, and merge updates.

3. Acceleration Materialization Tasks

  • Used for query acceleration.

  • Characteristics:

    • They can be hit by queries.

    • They do not support append-style updates, which preserves hit correctness.

4. External Materialization Tasks

  • Used to register existing externally materialized results.

6. Scheduling Dependencies

Dependency Rules

Current Instance Cycle Dependable Instance Cycle Dependency Condition Selection Rule
Minute Minute Same natural hour and scheduled time <= current instance Select the nearest one.
Minute Hour Same natural hour and scheduled time <= current instance Depend on it if there is exactly one match.
Minute Day / Week / Month / Year Same natural day and scheduled time <= current instance Depend on it if there is exactly one match.
Hour Minute Same natural hour Select the last one in that hour.
Hour Hour Same natural day and scheduled time <= current instance Select the nearest one.
Hour Day / Week / Month / Year Same natural day and scheduled time <= current instance Depend on it if there is exactly one match.
Day Minute / Hour Same natural day Select the last one of the day.
Day Day / Week / Month / Year Same natural day Depend on it if there is exactly one match.
