Query Available Dimensions
API Description
Use this API to query the available dimensions for a metric.
API URL
GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metrics/dimension
For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.
Request Parameters
Common Request Parameters (HEADERS)
| Parameter | Type | Required | Description |
|---|---|---|---|
| tenant-id | String | Yes | The tenant ID for the tenant that contains the metric query content. |
| auth-type | String | Yes | Authentication method. Supported values: UID, TOKEN, ACCOUNT, APIKEY. |
| auth-value | String | Yes | Authentication value that corresponds to auth-type. |
How to Obtain Common Parameters

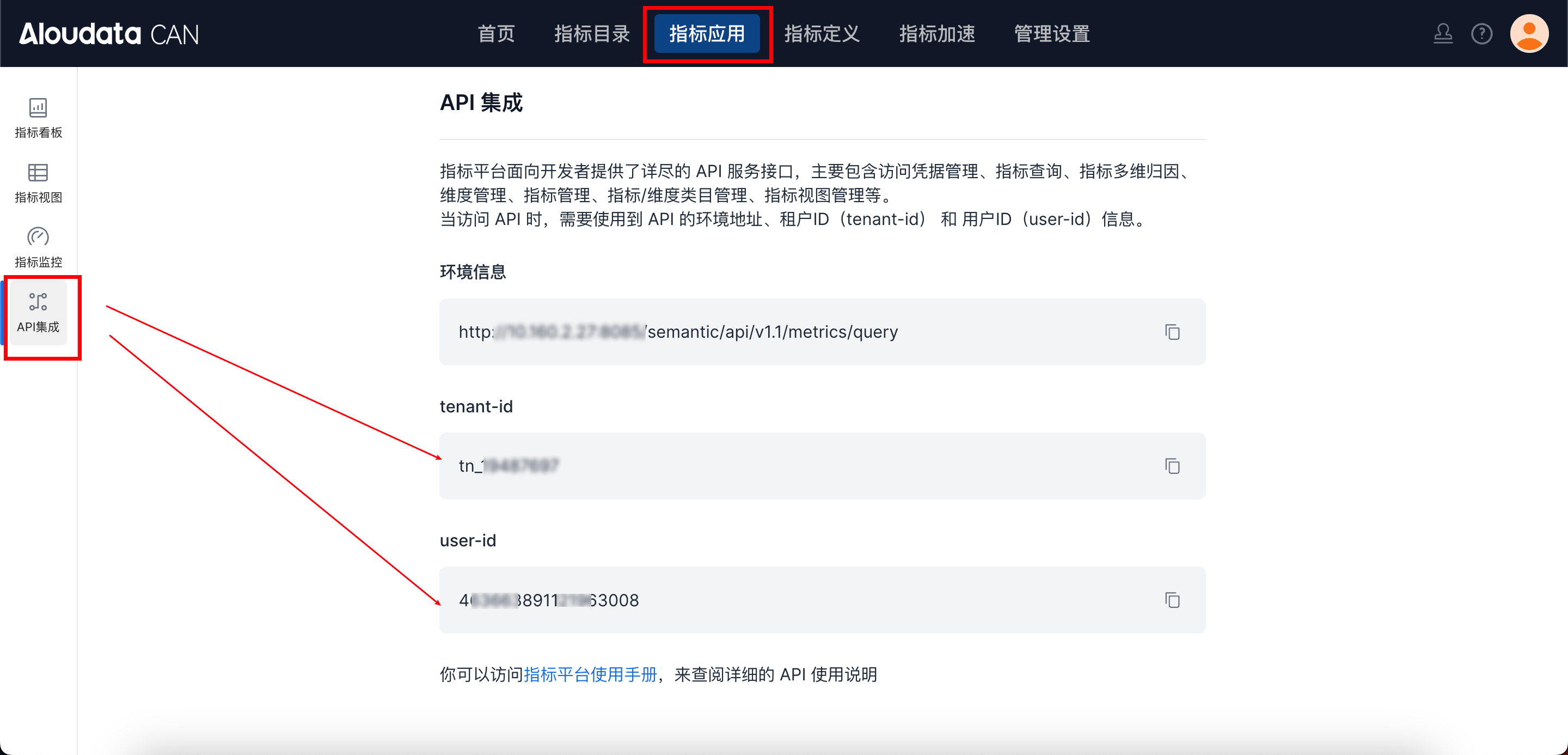

To obtain tenant-id, select the metric application from the top navigation bar in Aloudata CAN, choose API Integration from the left navigation menu, and copy it from the API Integration page. Set auth-value based on the selected auth-type.
Request Parameters
| Parameter | Type | Required | Maximum Length | Description |
|---|---|---|---|---|
| metricNames | Array[String] | Yes | Metric name list. If you pass one metric, the API returns all available dimensions for that metric. If you pass multiple metrics, the API returns the union of available dimensions. |
Response Parameters
Response Parameter Description
| Parameter | Type | Required | Maximum Length | Description |
|---|---|---|---|---|
| code | String | Yes | 32 | API response code. |
| message | String | Yes | 512 | Message body. |
| traceId | String | Yes | 128 | Trace ID. |
| data | Array[Object] | Response data. For details, see "data Parameter Description". |
data Parameter Description
| Parameter | Type | Required | Maximum Length | Description |
|---|---|---|---|---|
| basicAttributes | Map |
No | Basic attributes. | |
| businessAttributes | Map |
No | Business attributes. | |
| technicalAttributes | Map |
No | Technical attributes. | |
| managementAttributes | Map |
No | Management attributes. | |
| name | String | Yes | Dimension name. | |
| dimName | String | Yes | English dimension name. | |
| dimCode | String | No | Dimension code. | |
| dimDisplayName | String | Yes | Dimension display name. | |
| dimCategoryId | String | Category ID of the dimension. | ||
| dimDescription | String | Dimension description. | ||
| datasetName | String | Name of the dataset bound to the dimension. | ||
| originDataType | String | Dimension type. | ||
| config | array | Dimension source description. For details, see "config Parameter Description". |
config Parameter Description
| Parameter | Type | Required | Description |
|---|---|---|---|
| type | String | Yes | Dimension type, indicating the source of the dimension. Enum values: - COLUMN_BIND: column binding- CUSTOM: custom type |
| value | String | - If the dimension is a column-binding dimension, value is the column name.- If the dimension is a custom dimension, specify an expression. The expression is equivalent to adding a calculated column to the dataset. |
Request Example
Response Example
{
"data": [
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "96bb0438244f49c988bc2a453fd1a457",
"dimName": "Customers_Address",
"dimCode": null,
"dimDisplayName": "Address",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "Customers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "Address"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "bb9e257f3ba84893a7c05ea40172ce79",
"dimName": "Units_1",
"dimCode": "",
"dimDisplayName": "Units",
"dimCategoryId": "-1",
"dimDescription": "Units",
"datasetName": "TransactionDetails",
"originDataType": "DECIMAL",
"config": {
"type": "COLUMN_BIND",
"value": "Units"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "046818b86a6946798787d6511f47b9f9",
"dimName": "CustomerManagers_AllocationDate",
"dimCode": null,
"dimDisplayName": "AllocationDate",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "DATE",
"config": {
"type": "COLUMN_BIND",
"value": "AllocationDate"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "47331a313f404dcba3b0f45897099599",
"dimName": "CustomerManagers_CustomerID",
"dimCode": null,
"dimDisplayName": "CustomerID",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "CustomerID"
},
"displayStatus": null
}
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "aa7b50fa04824d36ae6142c14a1fa589",
"dimName": "FundManagers_ManagerName",
"dimCode": null,
"dimDisplayName": "ManagerName",
"dimCategoryId": "-1",
"dimDescription": null,
"datasetName": "FundManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "ManagerName"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "5035867a5a67416fbacca095c65136ec",
"dimName": "CustomerManagers_ManagerName",
"dimCode": null,
"dimDisplayName": "ManagerName",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "ManagerName"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "c930e00b37714c6f878ab62af2bb96bb",
"dimName": "CustomerManagers_ContactEmail",
"dimCode": null,
"dimDisplayName": "ContactEmail",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "ContactEmail"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "485297647d044dc8b2ca26ec5a24e621",
"dimName": "Customers_CustomerName",
"dimCode": null,
"dimDisplayName": "CustomerName",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "Customers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "CustomerName"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "metric_time",
"dimName": "metric_time",
"dimCode": null,
"dimDisplayName": "metric_time",
"dimCategoryId": null,
"dimDescription": "metric time",
"datasetName": null,
"originDataType": "DATE",
"config": null,
"displayStatus": null
}
],
"success": true,
"code": "200",
"errorMsg": null,
"detailErrorMsg": null,
"traceId": "4e9d90ec920d413fb58b9c744dcdbb1f.149.17267154343391151"
}
