List Metric Views as a Tree
API Description
Use this API to get metric views in a tree structure.
API URL
GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/analysisview/treeList
For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.
Request Parameters
Common Request Parameters (HEADERS)
| Parameter | Type | Required | Description |
|---|---|---|---|
| tenant-id | String | Yes | The tenant ID that identifies the tenant where the metric views belong |
| auth-type | String | Yes | Authentication type. Supported values: UID, TOKEN, ACCOUNT, and APIKEY |
| auth-value | String | Yes | The authentication value that corresponds to auth-type |
How to Obtain Common Parameters

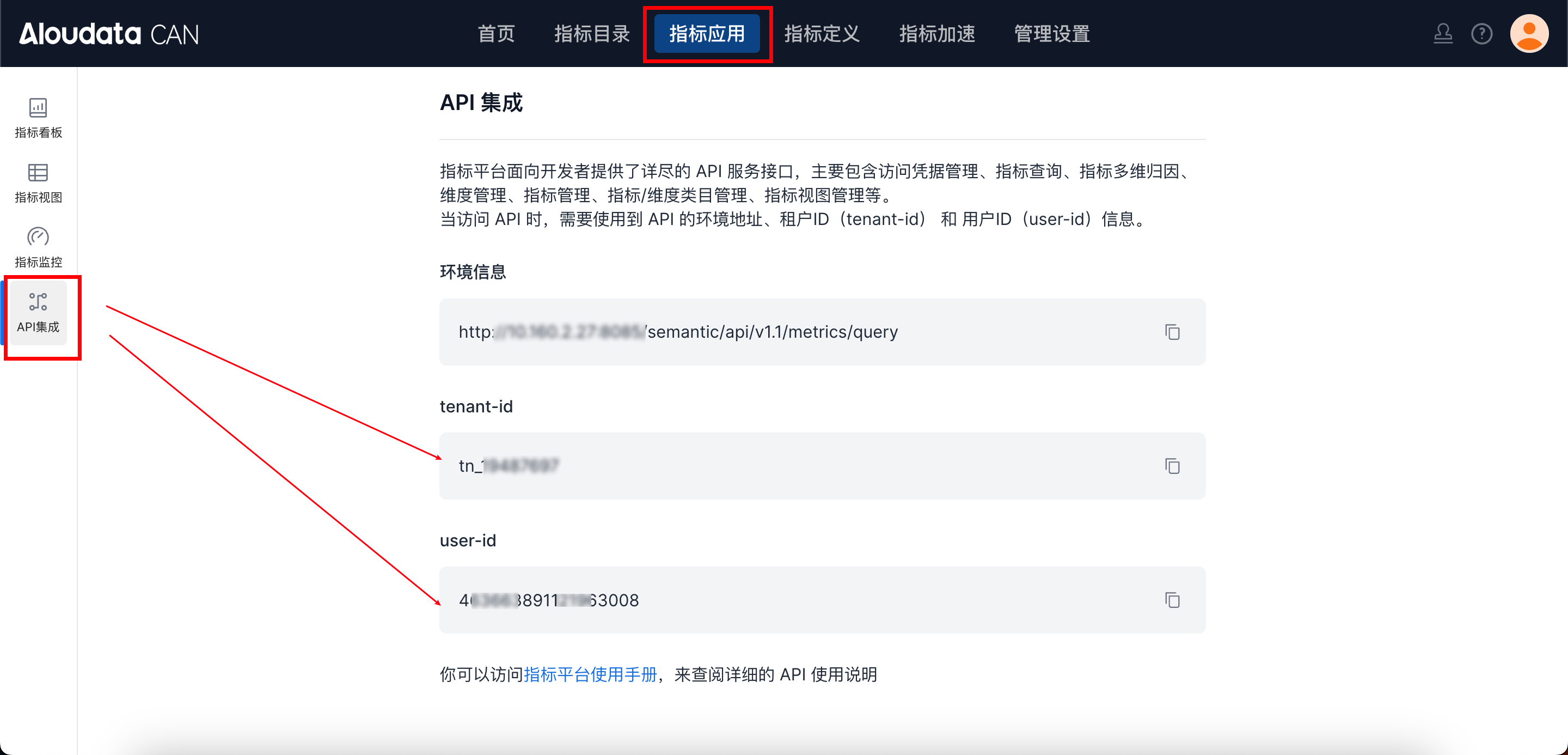

To obtain tenant-id, select a metric application in the top navigation bar of Aloudata CAN, choose API Integration from the left-side menu, and copy it from the API Integration page. Set auth-value to the authentication value that corresponds to the selected auth-type.
Request Parameters
None.
Response Parameters
| Parameter | Type | Required | Max Length | Description |
|---|---|---|---|---|
| categoryId | String | Yes | Current category ID | |
| categoryName | String | Yes | Current category name | |
| analysisViewList | Array | No | Analysis view information | |
| subCategory | Array | No | Subcategory list in recursive format |
analysisView Information
| Parameter | Type | Required | Max Length | Description |
|---|---|---|---|---|
| id | Integer | Yes | Metric view ID | |
| viewName | String | Yes | 50 | Metric view name |
| displayName | String | Yes | Metric view display name | |
| description | String | No | 300 | Metric view description |
Request Example
Response Example
[
{
"categoryId": "category123", // Current category ID
"categoryName": "Category Name", // Current category name
"analysisViewList": [
{
"id": 226,
"analysisViewName": "Analysis 1",
"cnName":"Display Name",
"description": "Description of Analysis 1"
},
{
"id": 227,
"analysisName": "Analysis 2",
"cnName":"Display Name",
"description": "Description of Analysis 2"
}
], // Metric view list
"subCategory": [
{
"categoryId": "subCategory123",
"categoryName": "Subcategory Name",
"analysisViewList": [
{
"id": 228,
"analysisName": "Subanalysis 1",
"cnName":"Display Name",
"description": "Description of Subanalysis 1",
}
],
"subCategory": []
}
] // Subcategory resources
}
]
