Get Metric Details in Bulk

API Description

Use this API to query metric details in bulk.

API URL

GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metrics/batchDetail

For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.

Request Parameters

Common Request Parameters (HEADERS)

Parameter	Type	Required	Description
tenant-id	String	Yes	The tenant ID for the tenant that contains the metric query content.
auth-type	String	Yes	Authentication method. Supported values: `UID`, `TOKEN`, `ACCOUNT`, `APIKEY`.
auth-value	String	Yes	Authentication value that corresponds to `auth-type`.

How to Obtain Common Parameters

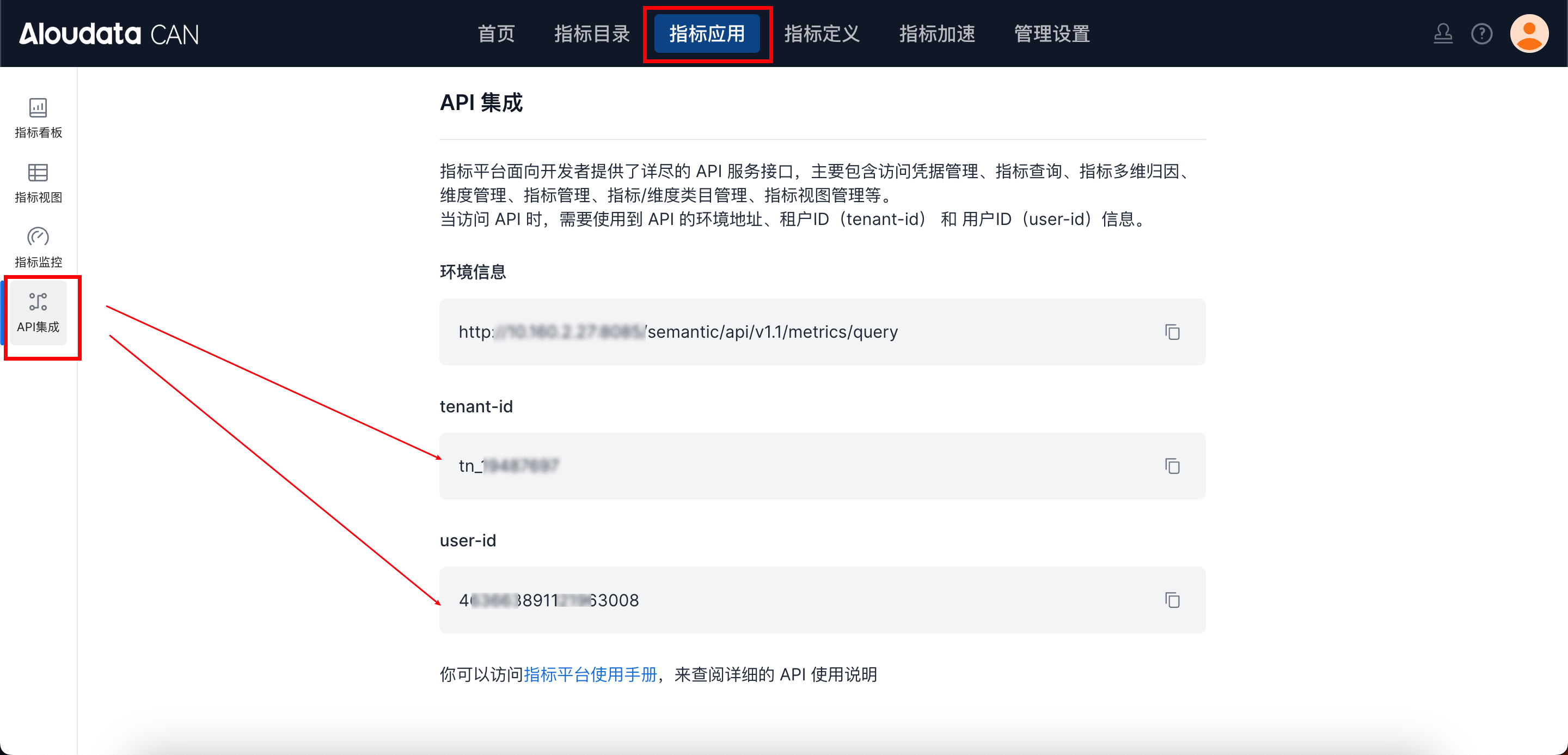

To obtain tenant-id, select the metric application from the top navigation bar in Aloudata CAN, choose API Integration from the left navigation menu, and copy it from the API Integration page. Set auth-value based on the selected auth-type.

Request Parameters

Parameter	Type	Required	Maximum Length	Description
metricNames	Array[String]	Yes		Metric name list.

Response Parameters

Response Parameter Description

Parameter	Type	Required	Maximum Length	Description
code	String	Yes	64	API response code.
message	String	Yes	512	Message body.
traceId	String	Yes	128	Trace ID.
data	Array[Object]	Yes		Response result data. For details, see "data Parameter Description".

data Parameter Description

Parameter	Type	Required	Maximum Length	Description
code	String	No		Unique metric identifier generated by the system.
metricName	String	Yes	128	Metric name.
version	Int	No		Metric version.
metricCode	String	Yes		Metric code.
type	String	Yes		Metric type.
metricDisplayName	String	Yes		Metric display name.
businessCaliber	String	No		Metric business definition.
caliber	String			Metric calculation definition.
owner	String			Metric owner.
businessOwner	String			Metric business owner.
unit	String			Metric unit.
metricCategoryId	String			Metric category ID.
basicAttributes	Map	No		Basic attributes.
businessAttributes	Map	No		Business attributes.
technicalAttributes	Map	No		Technical attributes.
managementAttributes	Map	No		Management attributes.
metricViewCount	Integer	Yes		Number of metric queries.
status	String	Yes		Final metric status. Enum values: `ONLINE`: online; `OFFLINE`: offline.
publishStatus	String	Yes		Publishing status. Enum values: `DRAFT`: draft; `PUBLISHED`: published.
displayStatus	String	No		Current metric status. Enum values: `UNPUBLISHED`: unpublished; `PUBLISHED`: published; `SAVED_NOT_PUBLISHED`: saved but not published; `OFFLINE`: offline; `PENDING_PUBLISH`: publishing; `PENDING_OFFLINE`: taking offline; `PENDING_DELETE`: pending deletion.

Request Example

http://127.0.0.1/anymetrics/api/v1/metrics/batchDetail?metricNames=code1&metricNames=code2

Response Example

{
    "data": [
        {
            "basicAttributes": {},
            "businessAttributes": {},
            "technicalAttributes": {},
            "managementAttributes": {},
            "code": "35a5346569054e8e8099ad7ad2c176db",
            "metricName": "open_order_count_3",
            "metricDisplayName": "Order Count_Custom Aggregate Function 3",
            "businessCaliber": "Metric 1 created through OpenAPI.",
            "owner": "correctness_test_qq",
            "businessOwner": "correctness_test_qq",
            "type": "ATOMIC",
            "caliber": {
                "datasetName": "can_order",
                "expr": "count(['can_order'/'order_id'])",
                "formula": null,
                "filters": [],
                "metricTime": "order_date",
                "enableNonAdditiveDimensions": null,
                "nonAdditiveDimensions": null,
                "fingerPrint": null
            },
            "unit": "OTHER",
            "metricCategoryId": "-1",
            "metricViewCount": 0,
            "publishStatus": null,
            "status": "ONLINE"
        },
        {
            "basicAttributes": {},
            "businessAttributes": {},
            "technicalAttributes": {},
            "managementAttributes": {},
            "code": "1d45e0191f9348dd9a242fa0839d13a9",
            "metricName": "ordercount_12",
            "metricDisplayName": "Order Count_Custom Aggregate Function 4",
            "businessCaliber": "Metric 1 created through OpenAPI.",
            "owner": "correctness_test_qq",
            "businessOwner": "correctness_test_qq",
            "type": "ATOMIC",
            "caliber": {
                "datasetName": "can_order",
                "expr": "count(['can_order'/'order_id'])",
                "formula": null,
                "filters": [
                    {
                        "type": "EXPR",
                        "expr": "IN(['can_product'/'brand_name'],\"Huawei\")"
                    }
                ],
                "metricTime": "order_date",
                "enableNonAdditiveDimensions": null,
                "nonAdditiveDimensions": null,
                "fingerPrint": null
            },
            "unit": "OTHER",
            "metricCategoryId": "-1",
            "metricViewCount": 0,
            "publishStatus": null,
            "status": "ONLINE"
        }
    ],
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "f6e656798ed241c789f7132823c46c6b.140.17194021322700363"
}
