Get Single Metric Details

API Description

Use this API to query the details of a metric.

API URL

GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metrics/detail

For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.

Request Parameters

Common Request Parameters (HEADERS)

Parameter	Type	Required	Description
tenant-id	String	Yes	The tenant ID for the tenant that contains the metric query content.
auth-type	String	Yes	Authentication method. Supported values: `UID`, `TOKEN`, `ACCOUNT`, `APIKEY`.
auth-value	String	Yes	Authentication value that corresponds to `auth-type`.
queryBy	String	No	Set to `UUID` to query metric details by metric `code`.

How to Obtain Common Parameters

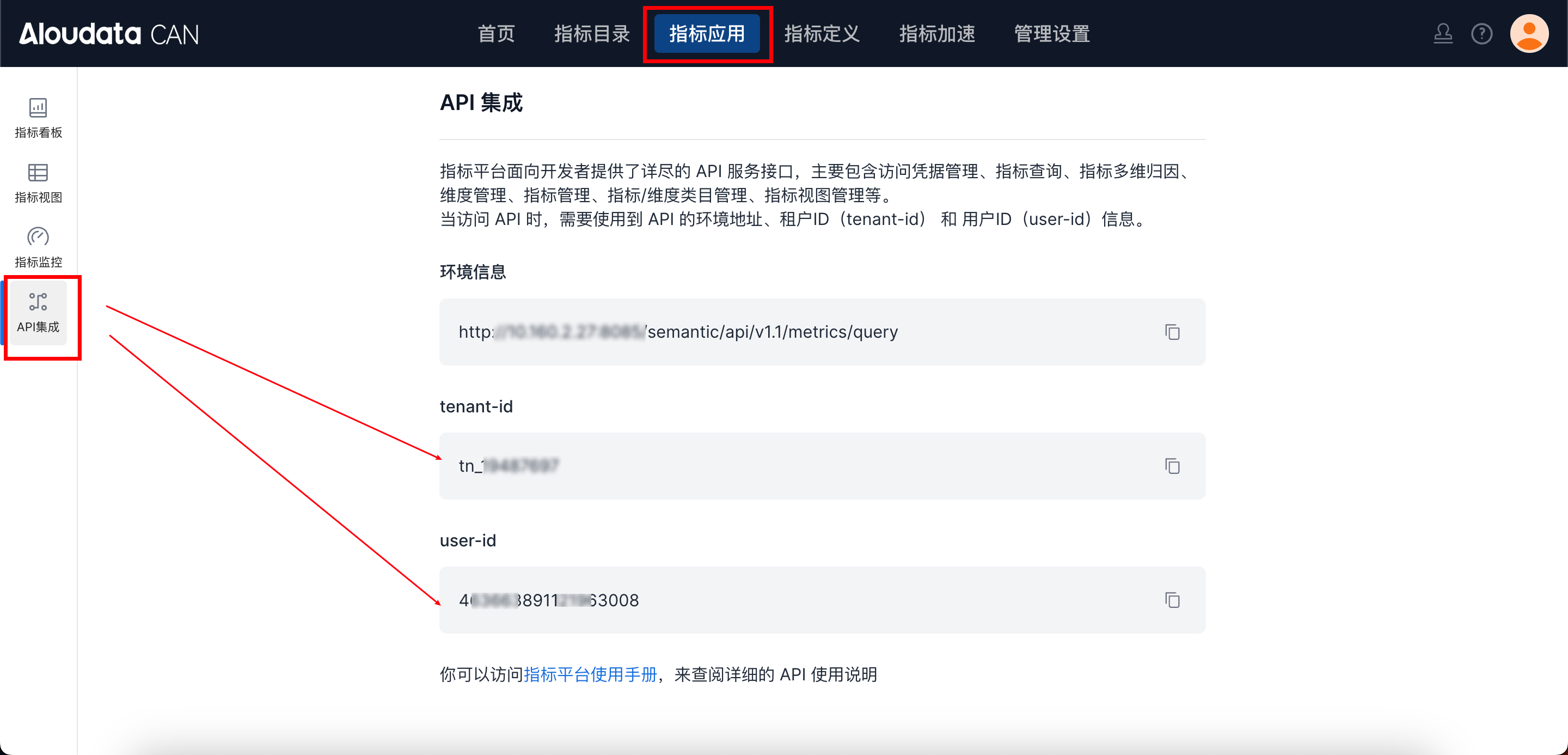

To obtain tenant-id, select the metric application from the top navigation bar in Aloudata CAN, choose API Integration from the left navigation menu, and copy it from the API Integration page. Set auth-value based on the selected auth-type.

Request Parameters

Parameter	Type	Required	Maximum Length	Description
metricName	String	Yes	128	Metric name.

Response Parameters

Response Parameter Description

Parameter	Type	Required	Maximum Length	Description
code	String	Yes	64	API response code.
message	String	Yes	512	Message body.
traceId	String	Yes	128	Trace ID.
data	Array[Object]	Yes		Response result. For details, see "data Parameter Description".

data Parameter Description

Parameter	Type	Required	Maximum Length	Description
code	String	No		Unique metric identifier generated by the system.
metricName	String	Yes	128	Metric name.
version	Int	No		Metric version.
metricCode	String	No		Metric code.
type	String	Yes		Metric type.
metricDisplayName	String	Yes		Metric display name.
businessCaliber	String	No		Metric business definition.
caliber	Array	Yes		Metric calculation definition.
owner	String	No		Metric owner name.
businessOwner	String	No		Metric business owner name.
unit	String	No		Metric unit. For details, see "Metric Unit Description".
cnUnit	String	No		Chinese metric unit. For details, see "Metric Unit Description".
metricCategoryId	String	No		Metric category ID.
basicAttributes	Map	No		Basic attributes.
businessAttributes	Map	No		Business attributes.
technicalAttributes	Map	No		Technical attributes.
managementAttributes	Map	No		Management attributes.
metricViewCount	Integer	Yes		Number of metric queries.
viewDetailCount	Integer	Yes		Metric detail views.
status	String	Yes		Final metric status. Enum values: `ONLINE`: online; `OFFLINE`: offline.
publishStatus	String	Yes		Publishing status. Enum values: `DRAFT`: draft; `PUBLISHED`: published.
displayStatus	String	No		Current metric status. Enum values: `UNPUBLISHED`: unpublished; `PUBLISHED`: published; `SAVED_NOT_PUBLISHED`: saved but not published; `OFFLINE`: offline; `PENDING_PUBLISH`: publishing; `PENDING_OFFLINE`: taking offline; `PENDING_DELETE`: pending deletion.
gmtCreate	String	No		Creation time of the metric.
gmtUpdate	String	No		Update time of the metric.

Metric Unit Description

Category	Enum Value	Description
Currency	CNY_FEN	Fen (CNY)
CNY_YUAN	Yuan (CNY)
CNY_WAN	Ten thousand yuan (CNY)
CNY_BAI_WAN	Million yuan (CNY)
CNY_YI_YUAN	Hundred million yuan (CNY)
USD_CENT	Cent (USD)
USD_DOLLAR	Dollar (USD)
EUR_EURO	Euro (EUR)
HKD_DOLLAR	Dollar (HKD)
NEW_TAIWAN_DOLLAR	Dollar (TWD)
Time	DAY	Day
MONTH	Month
WEEK	Week
YEAR	Year
HOUR	Hour
MINUTE	Minute
SECOND	Second
QUARTER	Quarter
MILLISECOND	Millisecond
Ratio	DECIMAL	Decimal
PERCENTAGE	Percentage
PERMILLE	Per mille
Noun	RANK	Rank
Object Count	HOUSEHOLD	Household
TRANSACTION	Transaction
ITEM	Item
INDIVIDUAL	Individual
OCCURRENCE	Occurrence
PERSON_DAY	Person-day
FAMILY	Family
HAND	Hand
SHEET	Sheet
PACKAGE	Package
Weight	TON	Ton
KILOGRAM	Kilogram
Other	OTHER	Other

Request Example

http://127.0.0.1/anymetrics/api/v1/metrics/detail?metricName=orderCount

curl --location 'http://127.0.0.1:8085/anymetrics/api/v1/metrics/detail?metricName=mc2db8445b3a7148b7bc6ba8b853aa44' \
--header 'tenant-id: tn_21571046' \
--header 'auth-value: authority_test' \
--header 'auth-type: ACCOUNT' \
--header 'Content-Type: application/json' \
--header 'queryBy: UUID' \

Response Example

{
    "data": {
        "basicAttributes": {},
        "businessAttributes": {},
        "technicalAttributes": {},
        "managementAttributes": {},
        "code": "1d45e0191f9348dd9a242fa0839d13a9",
        "metricName": "ordercount_12",
        "metricDisplayName": "Order Count_Custom Aggregate Function 4",
        "businessCaliber": "Metric 1 created through OpenAPI.",
        "owner": "correctness_test_qq",
        "businessOwner": "correctness_test_qq",
        "type": "ATOMIC",
        "caliber": {
            "datasetName": "can_order",
            "expr": "count(['can_order'/'order_id'])",
            "formula": null,
            "filters": [
                {
                    "type": "EXPR",
                    "expr": "IN(['can_product'/'brand_name'],\"Huawei\")"
                }
            ],
            "metricTime": "order_date",
            "enableNonAdditiveDimensions": null,
            "nonAdditiveDimensions": null,
            "fingerPrint": null
        },
        "unit": "OTHER",
        "metricCategoryId": "-1",
        "metricViewCount": 0,
        "publishStatus": "PUBLISHED",
        "status": "ONLINE"
    },
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "f6e656798ed241c789f7132823c46c6b.145.17194017310870337"
}
