Metric Tree

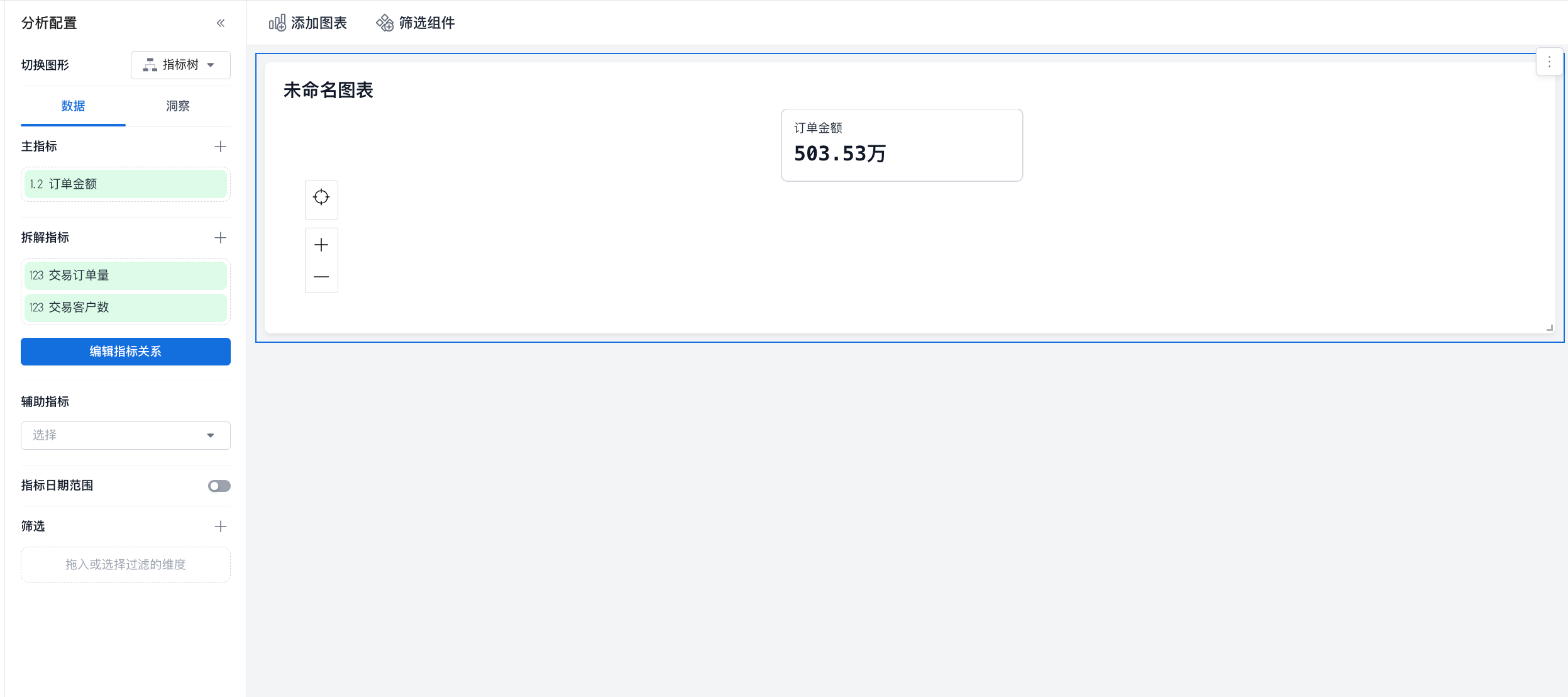

Query Configuration

Configuration Item	Description
Primary metric	1. Only one metric can be selected. 2. After you drag in the primary metric, its result can be calculated independently. 3. Quick derivation is not available for the metric.
Breakdown metrics	1. Multiple metrics can be selected. 2. Breakdown metrics can be calculated only after you configure the breakdown calculation relationship. 3. Quick derivation is not available for the metrics.
Auxiliary metrics	Same-period comparison values by day/week/month/quarter/year, same-period comparison growth values by day/week/month/quarter/year, and same-period comparison growth rates by day/week/month/quarter/year.
Metric date range	1. The default selection is the last 30 days.
Filter	1. Uses dimensions shared by the primary metric and breakdown metrics for filtering.

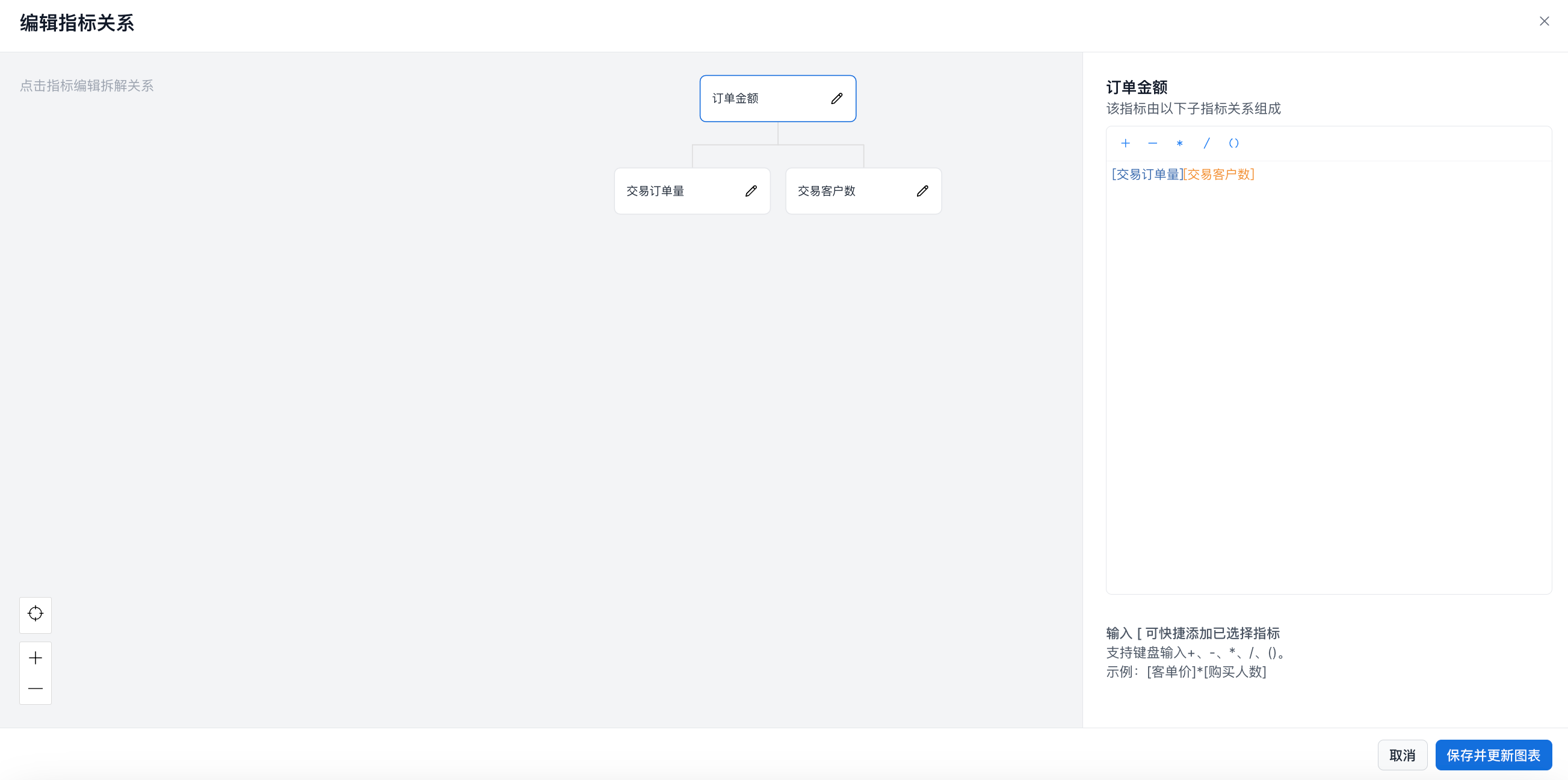

Edit Metric Relationships

After you click Edit Metric Relationships, you can edit the relationships in a new dialog box.

1. Configured breakdown metrics do not have to appear in the metric tree.

2. Configured breakdown metrics can appear multiple times in the metric tree.

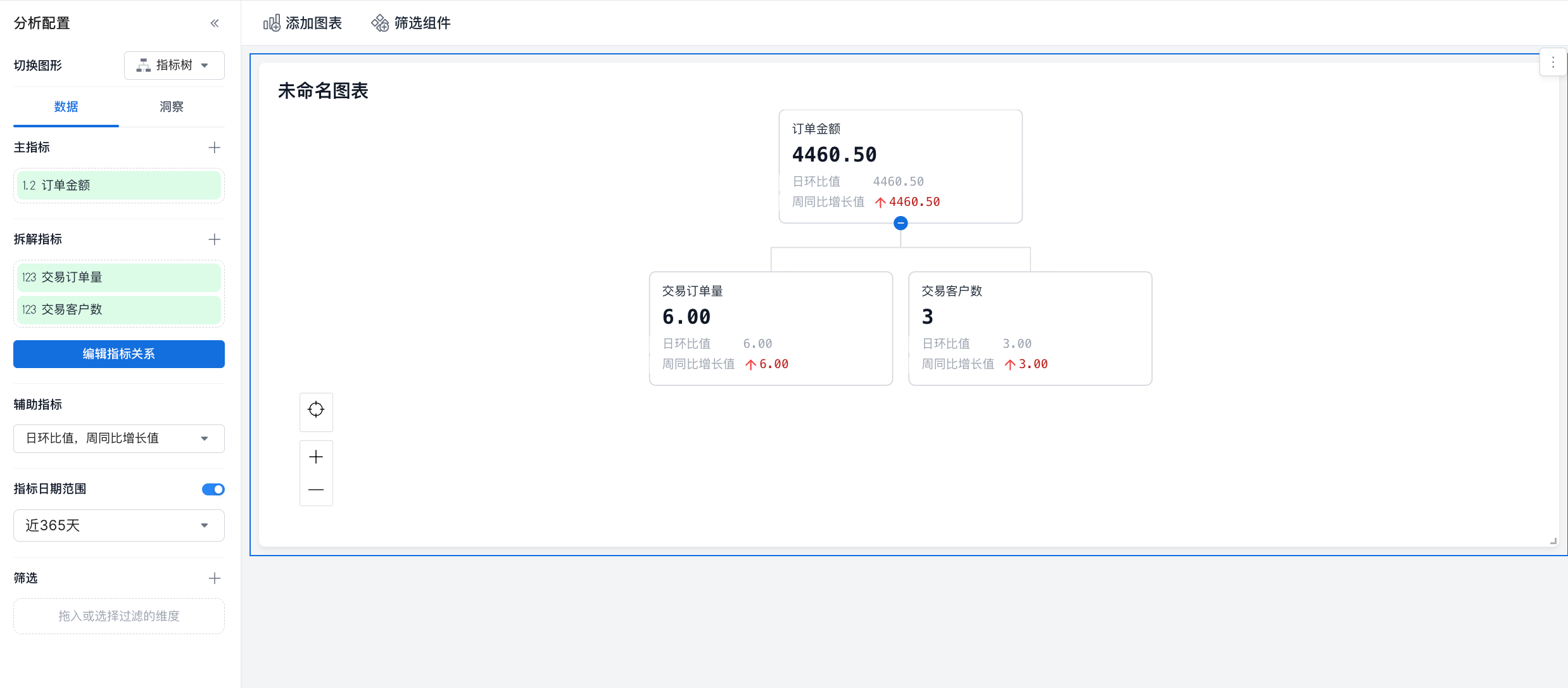

Metric Tree Style

1. Numeric metric cards keep up to two decimal places.

1. If a single metric query fails, -- is displayed instead of the value.

2. If an auxiliary metric cannot be calculated, -- is displayed instead.

3. Growth and decline symbols for auxiliary metrics are selected as follows.

Symbol	Same-period/period-over-period value	Same-period/period-over-period growth value	Same-period/period-over-period growth rate
Up	Lower than the current metric	Positive number	Positive number
Flat	Equal to the current metric	0	0
Down	Higher than the current metric	Negative number	Negative number
