List Metrics as a Tree
API Description
Use this API to get the metric list as a tree.
API URL
GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metrics/treeList
For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.
Request Parameters
Common Request Parameters (HEADERS)
| Parameter | Type | Required | Description |
|---|---|---|---|
| tenant-id | String | Yes | The tenant ID for the tenant that contains the metric query content. |
| auth-type | String | Yes | Authentication method. Supported values: UID, TOKEN, ACCOUNT, APIKEY. |
| auth-value | String | Yes | Authentication value that corresponds to auth-type. |
How to Obtain Common Parameters

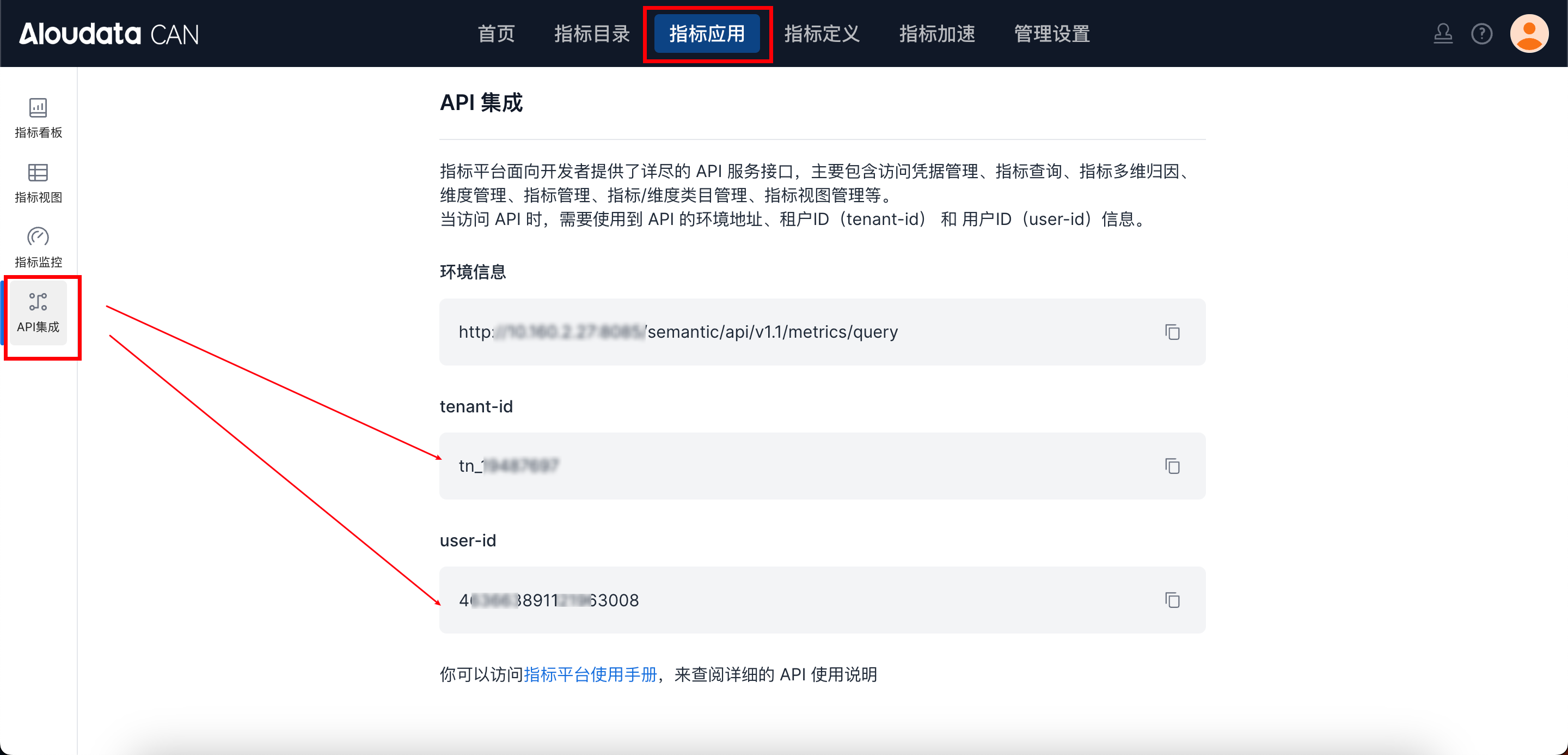

To obtain tenant-id, select the metric application from the top navigation bar in Aloudata CAN, choose API Integration from the left navigation menu, and copy it from the API Integration page. Set auth-value based on the selected auth-type.
Request Parameters
None.
Response Parameters
Response Parameter Description
| Parameter | Type | Required | Maximum Length | Description |
|---|---|---|---|---|
| categoryId | String | Yes | Current category ID. | |
| categoryName | String | Yes | Current category name. | |
| metricList | Array | No | Metrics under the current category. For details, see "metricList Parameter Description". | |
| subCategory | Array | No | Child categories. This is a recursive structure. |
metricList Parameter Description
| Parameter | Type | Required | Maximum Length | Description | |
|---|---|---|---|---|---|
| code | String | No | Unique metric identifier generated by the system. | ||
| metricName | String | Yes | 128 | Metric name. | |
| version | Int | No | Metric version. | ||
| metricCode | String | Yes | Metric code. | ||
| metricDisplayName | String | Yes | Metric display name. | ||
| businessCaliber | String | Yes | Business definition. | ||
| owner | String | Yes | Metric owner. | ||
| type | String | Yes | Metric type. | ||
| unit | String | Yes | Metric unit. | ||
| metricViewCount | Integer | Yes | Number of metric queries. | ||
| status | String | Yes | Final metric status. Enum values: ONLINE: online; OFFLINE: offline. |
||
| publishStatus | String | Yes | Publishing status. Enum values: DRAFT: draft; PUBLISHED: published. |
||
| displayStatus | String | No | Current metric status. Enum values: UNPUBLISHED: unpublished; PUBLISHED: published; SAVED_NOT_PUBLISHED: saved but not published; OFFLINE: offline; PENDING_PUBLISH: publishing; PENDING_OFFLINE: taking offline; PENDING_DELETE: pending deletion. |
||
| properties | Map | No | Metric attributes. For details, see "properties Parameter Description". |
properties
| Parameter | Type | Required | Maximum Length | Description |
|---|---|---|---|---|
| MANAGE | String | No | 128 | Management attributes. |
| BUSINESS | String | No | Business attributes. | |
| TECHNOLOGY | String | No | 128 | Technical attributes. |
| BASE | String | No | 300 | Basic attributes. |
Request Example
Response Example
{
"data": {
"rootList": [
{
"categoryId": "cb26dc45-74b6-4724-8a61-b2c28bf03af1",
"categoryName": "New Category 0",
"metricList": [
{
"metricName": "count_express_no",
"metricDisplayName": "express_no Count",
"businessCaliber": "Counts express_no in tb_express.",
"owner": null,
"businessOwner": "436474374799757312",
"type": "ATOMIC",
"unit": "OTHER",
"metricCategoryId": "cb26dc45-74b6-4724-8a61-b2c28bf03af1",
"metricViewCount": 0,
"status": "ONLINE",
"publishStatus": "PUBLISHED",
"properties": {
"MANAGE": {},
"BUSINESS": {},
"TECHNOLOGY": {},
"BASE": {
"metricLevel": "T4"
}
}
}
],
"subCategory": [
{
"categoryId": "00516287-ab4b-4040-817c-074ab790bdb3",
"categoryName": "New Category 1",
"metricList": [
{
"metricName": "sum_OnlineSalesKey",
"metricDisplayName": "OnlineSalesKey Sum",
"businessCaliber": "Sums OnlineSalesKey in fact_tb1.",
"owner": null,
"businessOwner": "436932989968977920",
"type": "ATOMIC",
"unit": "OTHER",
"metricCategoryId": "00516287-ab4b-4040-817c-074ab790bdb3",
"metricViewCount": 0,
"status": "ONLINE",
"publishStatus": "PUBLISHED",
"properties": {
"MANAGE": {
"sdfdfda": "rsdyfg",
"fsdfg": "hk",
"gfds": "rd"
},
"BUSINESS": {
"asd": "dsfg"
},
"TECHNOLOGY": {},
"BASE": {
"metricLevel": "T4"
}
}
}
],
"subCategory": []
}
]
},
{
"categoryId": "-1",
"categoryName": "uncategorized",
"metricList": [
{
"metricName": "sum_order_amt",
"metricDisplayName": "order_amt Sum",
"businessCaliber": "Sums order_amt in tb_order.",
"owner": null,
"businessOwner": "436474374799757312",
"type": "ATOMIC",
"unit": "OTHER",
"metricCategoryId": "-1",
"metricViewCount": 0,
"status": "ONLINE",
"publishStatus": "PUBLISHED",
"properties": {
"MANAGE": {},
"BUSINESS": {},
"TECHNOLOGY": {},
"BASE": {}
}
},
{
"metricName": "count_buyer_id",
"metricDisplayName": "buyer_id Count",
"businessCaliber": "Counts buyer_id in tb_order.",
"owner": null,
"businessOwner": "436474374799757312",
"type": "ATOMIC",
"unit": "OTHER",
"metricCategoryId": "-1",
"metricViewCount": 0,
"status": "ONLINE",
"publishStatus": "PUBLISHED",
"properties": {
"MANAGE": {},
"BUSINESS": {},
"TECHNOLOGY": {},
"BASE": {}
}
},
{
"metricName": "tt",
"metricDisplayName": "Total Sales Excluding Shanghai dfss",
"businessCaliber": "[order_amt Sum]-[Shanghai order_amt Sum]",
"owner": null,
"businessOwner": "436474374799757312",
"type": "COMPOSITE",
"unit": "OTHER",
"metricCategoryId": "-1",
"metricViewCount": 0,
"status": "ONLINE",
"publishStatus": "PUBLISHED",
"properties": {
"MANAGE": {},
"BUSINESS": {},
"TECHNOLOGY": {},
"BASE": {
"metricLevel": "T3"
}
}
},
{
"metricName": "order_amt_sum_shanghai",
"metricDisplayName": "Shanghai order_amt Sum",
"businessCaliber": "Shanghai order_amt Sum",
"owner": null,
"businessOwner": "436474374799757312",
"type": "DERIVED",
"unit": "OTHER",
"metricCategoryId": "-1",
"metricViewCount": 0,
"status": "ONLINE",
"publishStatus": "PUBLISHED",
"properties": {
"MANAGE": {},
"BUSINESS": {},
"TECHNOLOGY": {},
"BASE": {}
}
}
],
"subCategory": []
}
]
},
"success": true,
"code": null,
"errorMsg": null,
"traceId": "586b0dfd92d74ed3985025e7710043f7.200.17161729765280029"
}
