List Categories

API Description

Use this API to list categories of a specified type. By specifying a category type, the system returns details for all child categories under the matching category.

API URL

GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/category/list?categoryType=xxx

For how to obtain anymetrics_host:anymetrics_port, see Calling APIs.

Request Parameters

Common Request Parameters (HEADERS)

Parameter Type Required Description
tenant-id String Yes Tenant ID, which identifies the tenant that owns the metric query content.
auth-type String Yes Authentication method. Supported values: UID, TOKEN, ACCOUNT, APIKEY.
auth-value String Yes Authentication value corresponding to auth-type.

How to Obtain Common Parameters

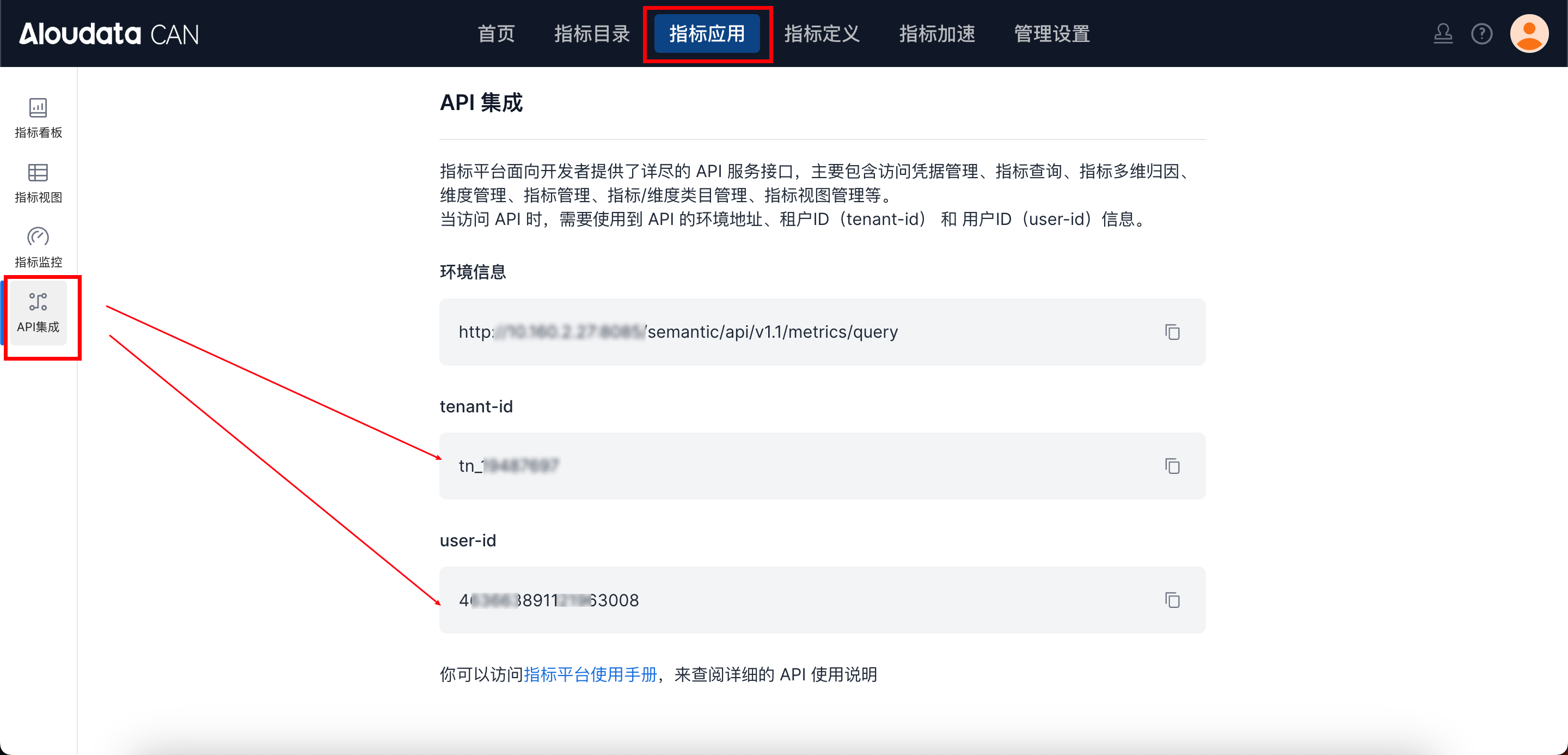

To obtain tenant-id, select Metric Application from the top navigation bar in Aloudata CAN, then select API Integration from the left menu. Enter auth-value according to the selected auth-type.

Request Parameters

Parameter Type Required Max Length Description
categoryType String Yes 32 Category type.
Metric category: CATEGORY_METRIC
Dimension category: CATEGORY_DIMENSION
Dataset category: CATEGORY_DATASET

Response Parameters

Response Parameter Description

Parameter Type Required Max Length Description
code String Yes 32 Response status code.
message String Yes 512 Message body.
traceId String Yes 128 Trace ID for troubleshooting.
data List Yes Data structure returned in the response. For details, see the data parameter description.

data Parameter Description

Parameter Type Required Max Length Description
id String Yes 64 Category ID.
name String Yes 32 Category name.
parentId String Yes 64 Parent category ID.
frontId String Yes 64 Previous category ID.
categoryType String Yes 32 Category type, corresponding to categoryType in the request parameters.
type String Yes 32 Type. System categories are marked as SYSTEM.

Request Example

http://127.0.0.1/anymetrics/api/v1/category/list?categoryType=CATEGORY_METRIC

Response Example

{
    "data": [

        {
            "id": "ec2f703e-e44d-4961-be71-522c46720976",
            "name": "API-created Category 01",
            "parentId": null,
            "frontId": "113d93da-e265-479d-830e-2d253be7d1c2",
            "categoryType": "CATEGORY_METRIC",
            "type": null
        },
        {
            "id": "113d93da-e265-479d-830e-2d253be7d1c2",
            "name": "API-created Category 02",
            "parentId": null,
            "frontId": null,
            "categoryType": "CATEGORY_METRIC",
            "type": null
        },
        {
            "id": "6b7d79ae-065c-4d84-910c-555fbde685ba",
            "name": "API-created Child Category 03",
            "parentId": "ec2f703e-e44d-4961-be71-522c46720976",
            "frontId": null,
            "categoryType": "CATEGORY_METRIC",
            "type": null
        },
        {
            "id": "-1",
            "name": "uncategorized",
            "parentId": null,
            "frontId": null,
            "categoryType": "CATEGORY_METRIC",
            "type": "SYSTEM"
        }
    ],
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "202baf375f5d4791a9f9555ba33afe43.149.17193065125610157"
}
