Preview Dimension Values

API Description

Use this API to preview values for a specified dimension. It supports keyword-based fuzzy matching and pagination, and is useful for metric data queries within a tenant where dimension values need to be matched exactly or by keyword.

API URL

POST Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/dimension/values

To obtain anymetrics_host:anymetrics_port, see Calling APIs.

Request Parameters

Common Request Headers

Parameter	Type	Required	Description
tenant-id	String	Yes	The tenant ID of the tenant that contains the metric query assets.
auth-type	String	Yes	Authentication type. Supported values: UID, TOKEN, ACCOUNT, APIKEY.
auth-value	String	Yes	Authentication value corresponding to auth-type.

How to Obtain Common Parameters

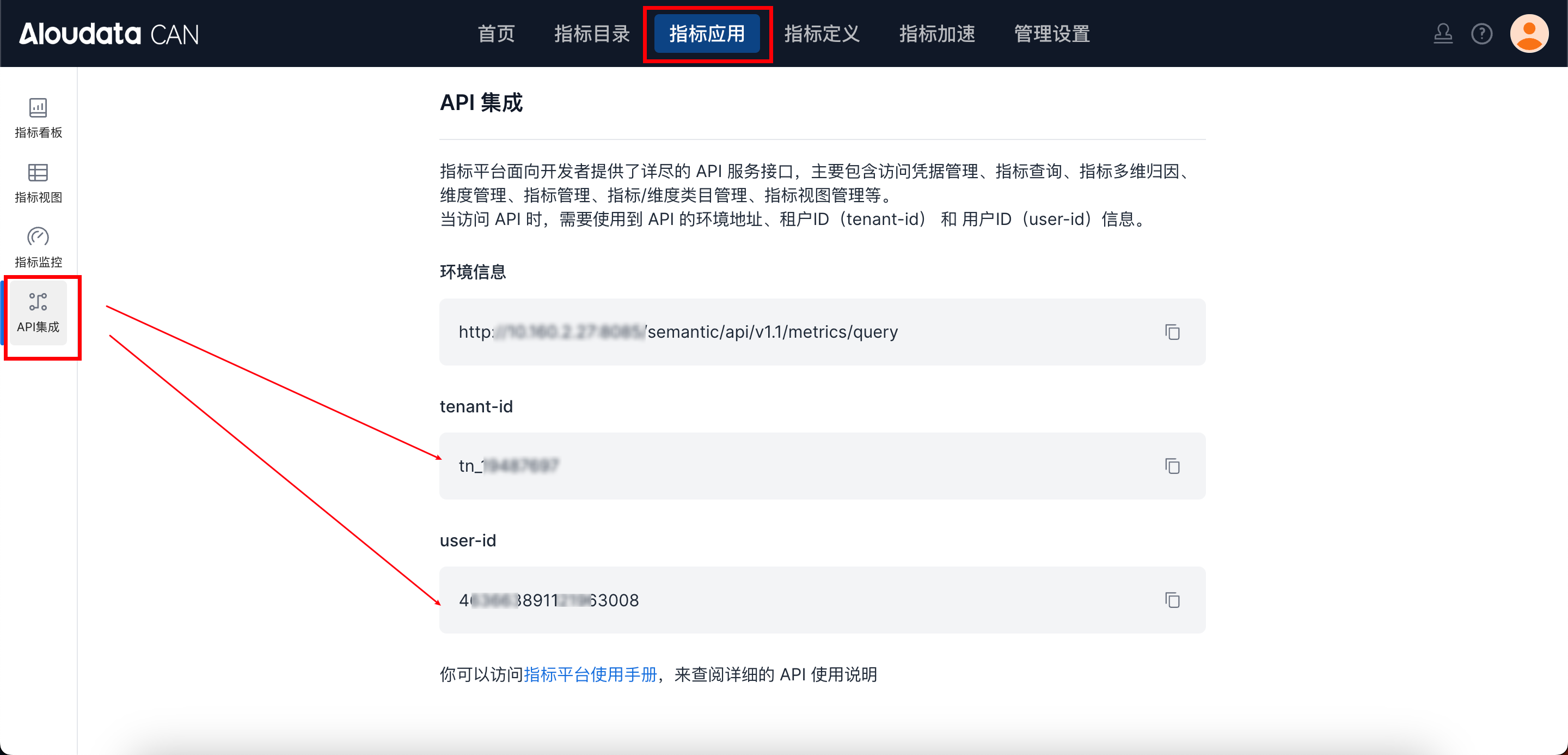

In Aloudata CAN, select the metric application from the top navigation bar, then choose API Integration from the left navigation menu. You can obtain tenant-id on the API Integration page. Set auth-value to the authentication value required by the selected auth-type.

Request Body

Request Body Parameters

Parameter	Type	Required	Description
dimName	String	Yes	Dimension name.
dimValueKeyword	String	No	Keyword for dimension values. If specified, fuzzy matching uses the LIKE '%keyword%' pattern. This option applies only to string dimensions; other dimension types ignore it automatically.
pageNumber	Integer	No	Page number, starting from 1. Defaults to 1 if omitted.
pageSize	Integer	No	Number of records per page. Defaults to 200 if omitted.

Response Parameters

Response Parameter Overview

Parameter	Type	Required	Description
code	String	Yes	API response code.
success	boolean	Yes	Whether the request succeeded.
errorMsg	String	Yes	Error message.
detailErrorMsg	String	Yes	Detailed error message.
traceId	String	Yes	Trace ID for troubleshooting.
data	object	Yes	Result data. See metas Parameters and tables Parameters.

metas Parameters

Parameter	Type	Required	Max Length	Description
name	String	Yes	32	Field name.
dataTypeName	String	Yes	32	Field type name.
schemaName	String	Yes	128	Schema name.
tableName	String	Yes	128	Table name.

tables Parameters

Parameter	Type	Required	Max Length	Description
values	String	Yes		Queried data value.
order_date	String	Yes		Marker for the value.
count	String	Yes		Number of occurrences for the value. Currently always 1.

Example

{
    "dimName":"shop_id"
}

Response Example

{
    "data": {
        "queryId": "4e06378a84af4f0f98333ff31ed6ad1c",
        "warning": null,
        "sql": "SELECT `tn_597771_correctness_test_qq_datasource__default__can_shop`.`shop_id`\nFROM `default_catalog`.`aloudatacan`.`tn_597771_correctness_test_qq_datasource__default__can_shop` AS `tn_597771_correctness_test_qq_datasource__default__can_shop`\nGROUP BY `tn_597771_correctness_test_qq_datasource__default__can_shop`.`shop_id`\nORDER BY (`tn_597771_correctness_test_qq_datasource__default__can_shop`.`shop_id`) IS NULL, `tn_597771_correctness_test_qq_datasource__default__can_shop`.`shop_id`\nLIMIT 200",
        "metas": [
            {
                "id": null,
                "name": "shop_id",
                "type": "INT",
                "displayName": null,
                "format": null,
                "description": null,
                "sourceType": null,
                "dataType": null,
                "columnFormat": null
            }
        ],
        "table": {
            "shop_id": [
                [
                    1,
                    1,
                    null
                ],
                [
                    2,
                    1,
                    null
                ],
                [
                    3,
                    1,
                    null
                ],
                [
                    4,
                    1,
                    null
                ],
                [
                    5,
                    1,
                    null
                ],
                [
                    6,
                    1,
                    null
                ],
                [
                    7,
                    1,
                    null
                ],
                [
                    8,
                    1,
                    null
                ]
            ]
        }
    },
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "ad3cd6c9fd5849b6a271f02f89edc93e.145.17193921246800027"
}
