API Description

Queries a metric tree attribution analysis report.

API Request URL

POST Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metric/tree/attribution/report/query

For how to obtain anymetrics_host:anymetrics_port, see Calling APIs

Request Parameters

Common Request Parameters (HEADERS)

Parameter	Type	Required	Description
tenant-id	String	Yes	Tenant ID, used to identify the tenant that contains the metric query content
auth-type	String	Yes	Authentication method. Supports UID、TOKEN、ACCOUNT、APIKEY
auth-value	String	Yes	Authentication value corresponding to auth-type

How to Obtain Common Parameters

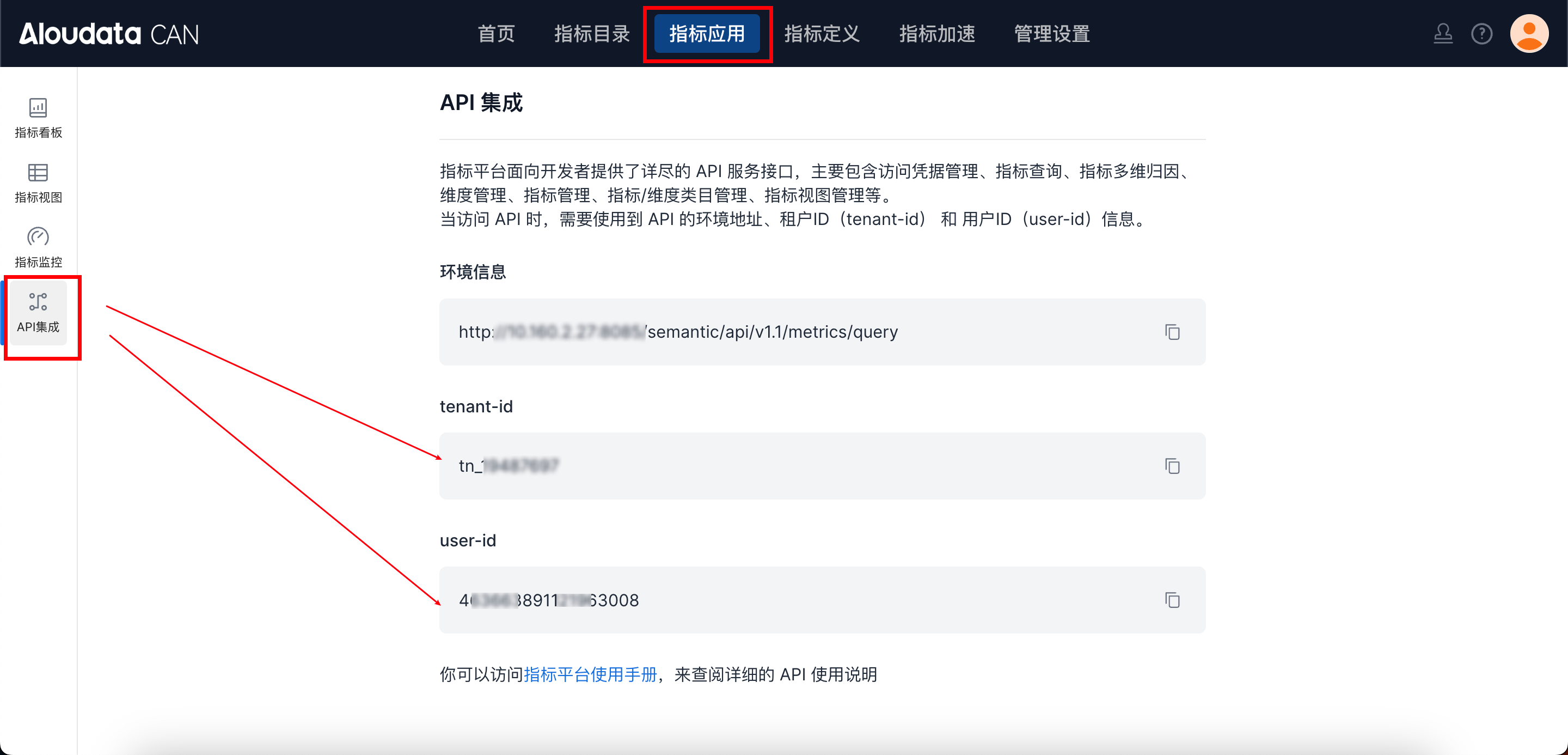

You can obtain tenant-id in Aloudata CAN by choosing Metric Applications in the top navigation and API Integration in the left menu. Fill in auth-value according to the selected auth-type.

Request Parameters

Map	Type	Required	Description
attributionRange	Map	Yes	Attribution range. For details, see attributionRange parameter description.
metricTree	Map	Yes	metricTree defines the hierarchy and calculation logic between metrics. Each node represents a metric and contains its calculation expression and referenced metric ID. For details, see metricTree parameter description.
metrics	Map	Yes	The metrics section defines details for each metric, including its unique identifier and code.
filters	List	No	Filters

attributionRange ParameterDescription

Parameter	Type	Required	Description
granularity	String	Yes	Time granularity: DAY, WEEK, MONTH, QUARTER, YEAR
currentFilter	String	Yes	Current time: <br>"currentFilter": {<br> "type": "EXPR",<br> "expr": "DateTrunc([metric_time], \"DAY\")=\"2024-12-25\""<br> }<br>
comparisonType	String	Yes	Comparison type: CUSTOM, DOD, YOY, MOM, QOQ, WOW
endDateTime	String	No	When comparison type is CUSTOM, specify startDateTime and endDateTime.
startDateTime	String	No

metricTree (Metric Tree)

Description: metricTree defines the hierarchy and calculation logic between metrics. Each node represents a metric and contains its calculation expression and referenced metric ID.

Node Information

Fill in the following information for each node:

Parameter Path	Type	Required	Example Value	Description
metricTree.{nodeName}	Object	Yes	{ "expr": "[SubMetric1]+[SubMetric2]", "refId": "METRIC_001" }	Name of each node, such as RootNode; contains the calculation expression and referenced metric ID.
metricTree.{nodeName}.expr	String	No	"[MetricA]+[MetricB]"	Calculation expression of the metric. If empty, the node is not split into additional metrics.
metricTree.{nodeName}.refId	String	Yes	"METRIC_001"	Referenced metric ID used to associate the node with a specific metric in metrics.

Example Node Values

nodeName	expr	refId	Description
RootNode	"[MetricA]+[MetricB]"	METRIC_001	Defines the root node by adding the two child metrics MetricA and MetricB.
MetricA	""	METRIC_002	No further split; directly references a specific metric.
MetricB	""	METRIC_003	No further split; directly references a specific metric.

metrics (Metric Definitions)

Description：The metrics section defines details for each metric, including its unique identifier and code.

Metric Information

Fill in the following information for each metric:

Parameter Path	Type	Required	Example Value	Description
metrics.{MetricID}	Object	Yes	{ "id": "METRIC_002", "code": "Sales" }	Unique identifier and code of each metric.
metrics.{MetricID}.id	String	Yes	"METRIC_002"	Unique ID of the metric.
metrics.{MetricID}.code	String	Yes	"Sales"	Metric code or name used to uniquely identify the metric.

Example Metric Values

MetricID	code	Description
METRIC_001	TotalSales	Calculated total sales.
METRIC_002	Sales	Specific sales metric.
METRIC_003	Returns	Return metric.

Complete Template

{
    "metricTree": {
        "RootNode": {
            "expr": "[MetricA]+[MetricB]",
            "refId": "METRIC_001"
        },
        "MetricA": {
            "expr": "",
            "refId": "METRIC_002"
        },
        "MetricB": {
            "expr": "",
            "refId": "METRIC_003"
        }
    },
    "metrics": {
        "METRIC_001": {
            "id": "METRIC_001",
            "code": "TotalSales"
        },
        "METRIC_002": {
            "id": "METRIC_002",
            "code": "Sales"
        },
        "METRIC_003": {
            "id": "METRIC_003",
            "code": "Returns"
        }
    },
    "filters": [
        "IN(['dim'],\"a\")"

    ],
    "attributionRange": {
        "granularity": "DAY",
        "comparisonType": "DOD",
        "currentFilter": {
            "type": "EXPR",
            "expr": "DateTrunc([metric_time], 'DAY') = '2024-11-30'"
        }
    }
}

ResponseParameter

Parameter	Type	Required	Max Length	Description	Example Value
code	String	Yes	32	API response code	200
errorMsg	String	Yes	512	Error message	null
success	boolean	Yes		Whether the request succeeded	true
traceId	String	Yes	128	traceId	fdde343f9ff2dcd70.292.16857691758642861
data	List	Yes		Returned result. For parameter details, see 4.1 data.
detailErrorMsg	String	Yes	512	Error details	null

data

Parameter	Subparameter	Type	Required	Description	Example Value
{Metric id}	currentValue	Double	Yes	Current value	123
comparisonValue	Double	Yes	Comparison value	100
growth	Double	Yes	Growth value	-23
growthRate	Double	Yes	Growth rate	0.23
contributionRate	Double	Yes	Contribution rate	0.23

Request Example

{
    "metricTree": {
        "sMkWfXTOQGqPIhMr": {
            "expr": "[VjhkQrQJRqZaAAdw]+[PoMpVMKjYnCXWrht]",
            "refId": "METRIC___SELF___BsZregkgzIWKeLlQ"
        },
        "VjhkQrQJRqZaAAdw": {
            "expr": "",
            "refId": "METRIC_mc056ea4a8aaf875414852edfdf152a3"
        },
        "PoMpVMKjYnCXWrht": {
            "expr": "",
            "refId": "METRIC_34ad74cd0b0542079f45b9873a7870d5"
        }
    },
    "metrics": {
        "METRIC_34ad74cd0b0542079f45b9873a7870d5": {
            "id": "METRIC_34ad74cd0b0542079f45b9873a7870d5",
            "code": "chixubaoyou"
        },
        "METRIC___SELF___BsZregkgzIWKeLlQ": {
            "id": "METRIC___SELF___BsZregkgzIWKeLlQ",
            "code": "lhdb_BYKH"
        },
        "METRIC_mc056ea4a8aaf875414852edfdf152a3": {
            "id": "METRIC_mc056ea4a8aaf875414852edfdf152a3",
            "code": "lhdb_ceshi6"
        }
    },
    "filters": [],
    "attributionRange": {
        "granularity": "DAY",
        "comparisonType": "DOD",
        "currentFilter": {
            "type": "EXPR",
            "expr": "DateTrunc([metric_time], \"DAY\") = \"2024-11-30\""
        }
    }
}

Response Example

{
    "data": {
        "PoMpVMKjYnCXWrht": {
            "dimensionValue": null,
            "currentValue": 10.0,
            "comparisonValue": 10.0,
            "growth": 0.0,
            "growthRate": 0.0,
            "overallContributionRate": 0.0,
            "relativeContributionRate": 0.0
        },
        "sMkWfXTOQGqPIhMr": {
            "dimensionValue": null,
            "currentValue": 11.0,
            "comparisonValue": 11.0,
            "growth": 0.0,
            "growthRate": 0.0,
            "overallContributionRate": 1.0,
            "relativeContributionRate": 1.0
        },
        "VjhkQrQJRqZaAAdw": {
            "dimensionValue": null,
            "currentValue": 1.0,
            "comparisonValue": 1.0,
            "growth": 0.0,
            "growthRate": 0.0,
            "overallContributionRate": 0.0,
            "relativeContributionRate": 0.0
        }
    },
    "success": true,
    "code": "200",
    "errorMsg": null,
    "detailErrorMsg": null,
    "traceId": "2184fcda742048f7bb0d82c963e09a7d.188.17369069011400081"
}
