指标可用维度查询
接口描述
本接口用于查询某个指标可用的维度
接口URL
GET Http://{anymetrics_host:anymetrics_port}/anymetrics/api/v1/metrics/dimension
anymetrics_host:anymetrics_port 获取方式请参考：调用方式
请求参数
公共请求参数(HEADERS)
| 参数 | 类型 | 是否必选 | 最大长度 | 描述 |
| tenant-id | String | 是 | 32 | 租户ID，用于指标查询内容所在的租户 |
| auth-type | String | 是 | 32 | 认证方式，用于设置身份认证方式 UID：使用 UID 进行身份认证TOKEN：使用 TOKEN 进行身份认证 |
| auth-value | String | 是 | 32 | UID或者TOKEN值，与auth-type 类型选择一致 |
公共参数获取方式

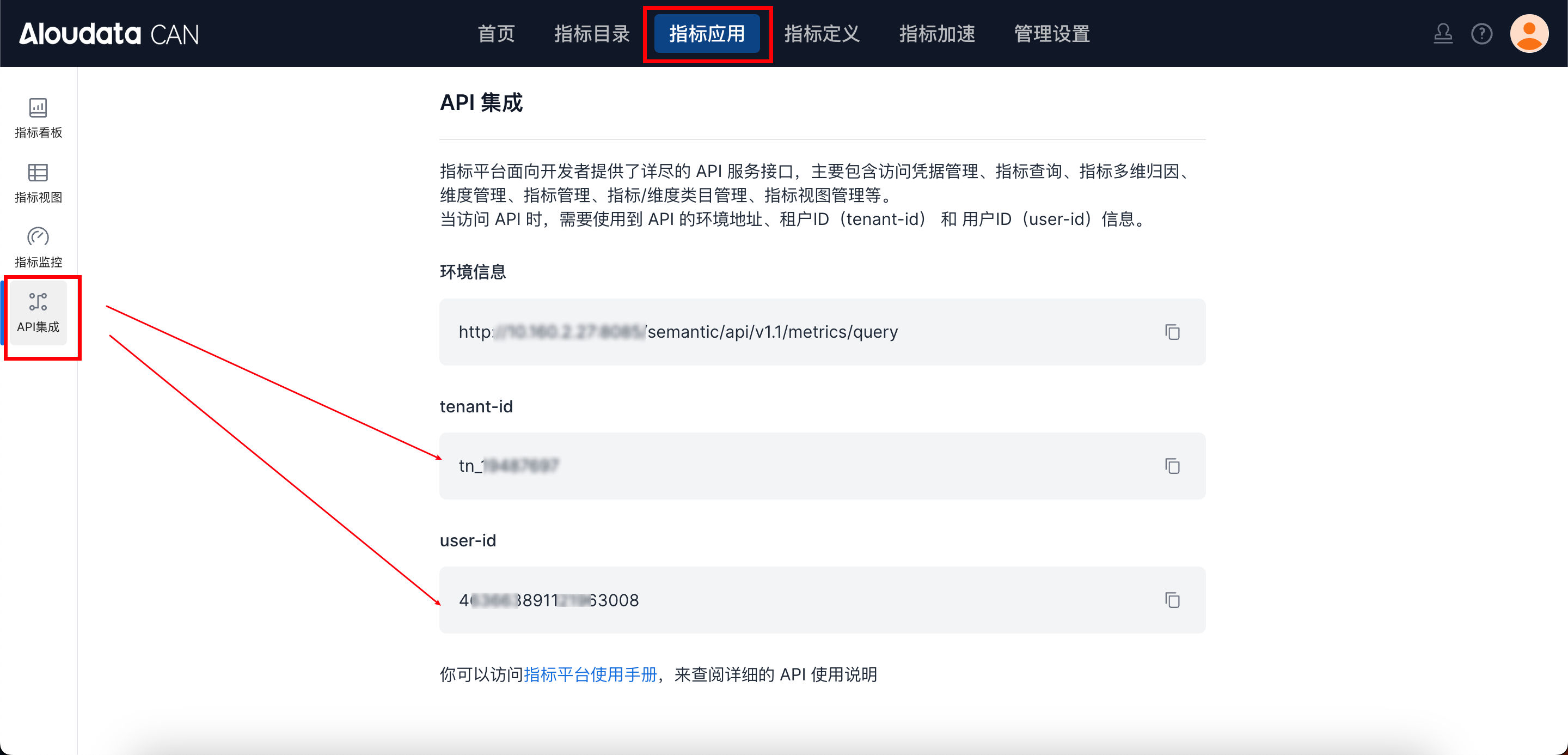

tenant-id 与 auth-value：在 Aloudata CAN 顶部导航栏选择指标应用，左边菜单栏选择 API 集成。在 API 集成界面获取取到tenant-id 与auth-value。
请求参数
| 参数 | 类型 | 是否必选 | 最大长度 | 描述 |
| metricNames | Array[String] | 是 | 指标名称集合，当入参为一个指标时返回该指标的所有可用维度。传入一组指标时，返回可用维度并集结果 |
响应参数
响应参数说明
| 参数 | 类型 | 是否必选 | 最大长度 | 描述 |
| code | String | 是 | 32 | 接口响应码 |
| message | String | 是 | 512 | 消息体 |
| traceId | String | 是 | 128 | traceId |
| data | Array[Object] | 响应数据，具体参数说明参见 4.2data 参数说明 |
data 参数说明
| 参数 | 类型 | 是否必选 | 最大长度 | 描述 |
| basicAttributes | Map |
否 | 基础属性 |
|
| businessAttributes | Map |
否 | 业务属性 |
|
| technicalAttributes | Map |
否 | 技术属性 |
|
| managementAttributes | Map |
否 | 管理属性 |
|
| name | String | 是 | 维度名称 | |
| dimName | String | 是 | 维度英文名 | |
| dimCode | String | 否 | 维度编码 | |
| dimDisplayName | String | 是 | 维度展示名 | |
| dimCategoryId | String | 维度所在类目 ID | ||
| dimDescription | String | 维度描述 | ||
| datasetName | String | 维度绑定的数据集名称 | ||
| originDataType | String | 维度的类型 | ||
| config | array | 维度来源说明，具体参数详情参见：4.3config 参数说明 |
config 参数说明
| 参数 | 类型 | 是否必选 | 描述 |
| type | String | 是 | 维度类型，说明维度的来源方式，枚举值：- COLUMN_BIND：字段绑定 - CUSTOM：自定义类型 |
| value | String | - 如果是字段绑定类型的维度，value为列名 - 如果是自定义类型的维度，需要指定一个表达式，这个表达式相当于在该数据集上添加的一个计算列 |
请求示例
响应示例
{
"data": [
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "96bb0438244f49c988bc2a453fd1a457",
"dimName": "Customers_Address",
"dimCode": null,
"dimDisplayName": "Address",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "Customers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "Address"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "bb9e257f3ba84893a7c05ea40172ce79",
"dimName": "Units_1",
"dimCode": "",
"dimDisplayName": "Units",
"dimCategoryId": "-1",
"dimDescription": "Units",
"datasetName": "TransactionDetails",
"originDataType": "DECIMAL",
"config": {
"type": "COLUMN_BIND",
"value": "Units"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "046818b86a6946798787d6511f47b9f9",
"dimName": "CustomerManagers_AllocationDate",
"dimCode": null,
"dimDisplayName": "AllocationDate",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "DATE",
"config": {
"type": "COLUMN_BIND",
"value": "AllocationDate"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "47331a313f404dcba3b0f45897099599",
"dimName": "CustomerManagers_CustomerID",
"dimCode": null,
"dimDisplayName": "CustomerID",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "CustomerID"
},
"displayStatus": null
}
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "aa7b50fa04824d36ae6142c14a1fa589",
"dimName": "FundManagers_ManagerName",
"dimCode": null,
"dimDisplayName": "ManagerName",
"dimCategoryId": "-1",
"dimDescription": null,
"datasetName": "FundManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "ManagerName"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "5035867a5a67416fbacca095c65136ec",
"dimName": "CustomerManagers_ManagerName",
"dimCode": null,
"dimDisplayName": "ManagerName",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "ManagerName"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "c930e00b37714c6f878ab62af2bb96bb",
"dimName": "CustomerManagers_ContactEmail",
"dimCode": null,
"dimDisplayName": "ContactEmail",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "CustomerManagers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "ContactEmail"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "485297647d044dc8b2ca26ec5a24e621",
"dimName": "Customers_CustomerName",
"dimCode": null,
"dimDisplayName": "CustomerName",
"dimCategoryId": "8a2977b7-4998-4bb1-aeee-a20e6f73f8d0",
"dimDescription": null,
"datasetName": "Customers",
"originDataType": "VARCHAR",
"config": {
"type": "COLUMN_BIND",
"value": "CustomerName"
},
"displayStatus": null
},
{
"basicAttributes": null,
"businessAttributes": null,
"technicalAttributes": null,
"managementAttributes": null,
"name": "metric_time",
"dimName": "metric_time",
"dimCode": null,
"dimDisplayName": "metric_time",
"dimCategoryId": null,
"dimDescription": "metric time",
"datasetName": null,
"originDataType": "DATE",
"config": null,
"displayStatus": null
}
],
"success": true,
"code": "200",
"errorMsg": null,
"detailErrorMsg": null,
"traceId": "4e9d90ec920d413fb58b9c744dcdbb1f.149.17267154343391151"
}
